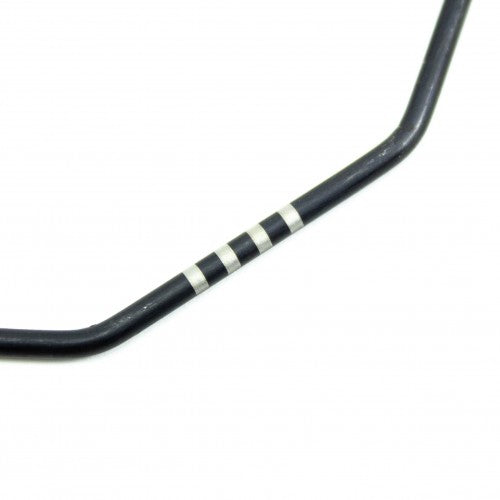

This is one of Ultimate Racing Anti-Roll Bar intended for Mugen, Associated and Xray. It’s black anodized, and laser engraved for easy identification. Available in multiple thicknesses (4 front and 4 rear) allowing you to fine tune your chassis. Package includes one anti-roll bar.

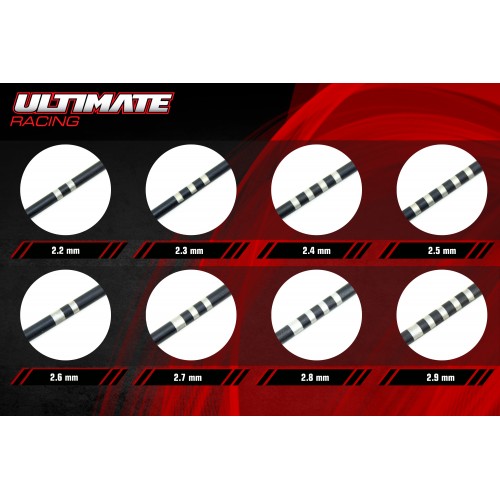

Front anti-roll bars:
UR1781-22 ULTIMATE 2.2mm FRONT ANTI-ROLL BAR
UR1781-23 ULTIMATE 2.3mm FRONT ANTI-ROLL BAR

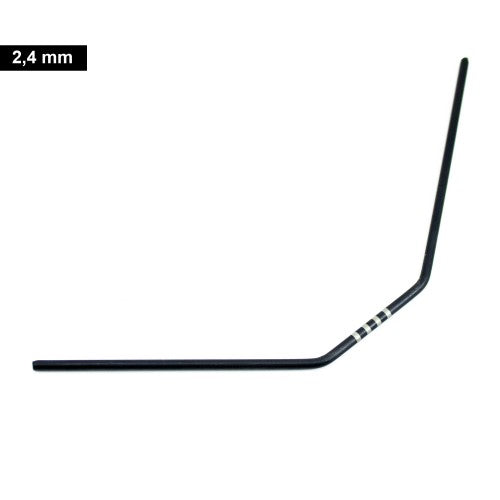

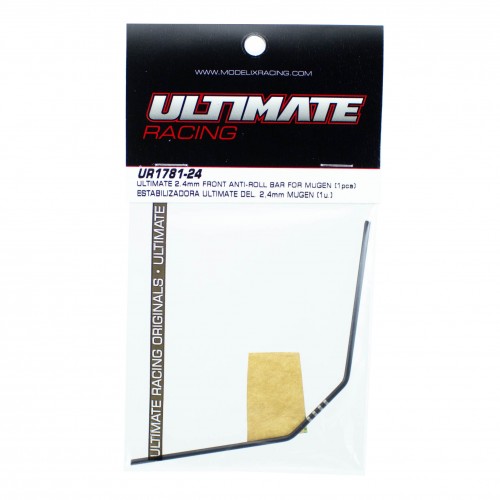

UR1781-24 ULTIMATE 2.4mm FRONT ANTI-ROLL BAR
UR1781-25 ULTIMATE 2.5mm FRONT ANTI-ROLL BAR
Effects of Front Roll Bar Adjustment
|
STIFFNESS
|
EFFECT
|
|
Stiffer
|
- Decreases front chassis roll
- Decreases steering at corner entry
- Increases steering at mid-corner
- Smoother steering response
|
|
Softer
|
- Increases front chassis roll
- Increases steering at corner entry
- Decreases steering at mid-corner
- Quicker steering response
|
Rear anti-roll bars:
UR1782-26 ULTIMATE 2.6mm REAR ANTI-ROLL BAR
UR1782-27 ULTIMATE 2.7mm REAR ANTI-ROLL BAR
UR1782-28 ULTIMATE 2.8mm REAR ANTI-ROLL BAR
UR1782-29 ULTIMATE 2.9mm REAR ANTI-ROLL BAR
Effects of Rear Roll Bar Adjustment
|
STIFFNESS
|
EFFECT
|
|
Stiffer
|
- Decreases rear chassis roll
- Decreases steering at corner entry
- Increases on-power steering
- Higher stability on high-speed corners
|
|
Softer
|
- Increases rear chassis roll
- Increases steering at corner entry
- Increases off-power steering
- Higher stability on low-speed corners
|
