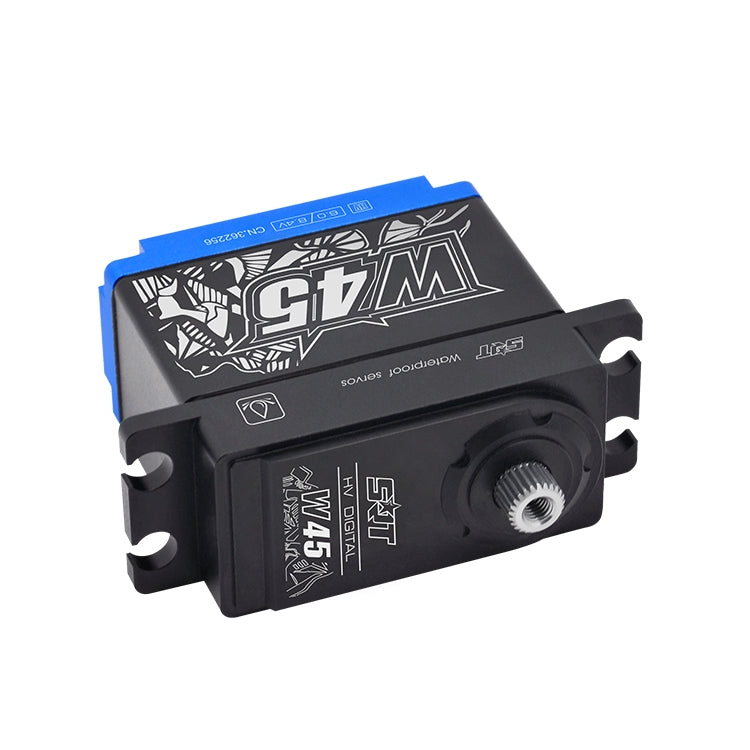

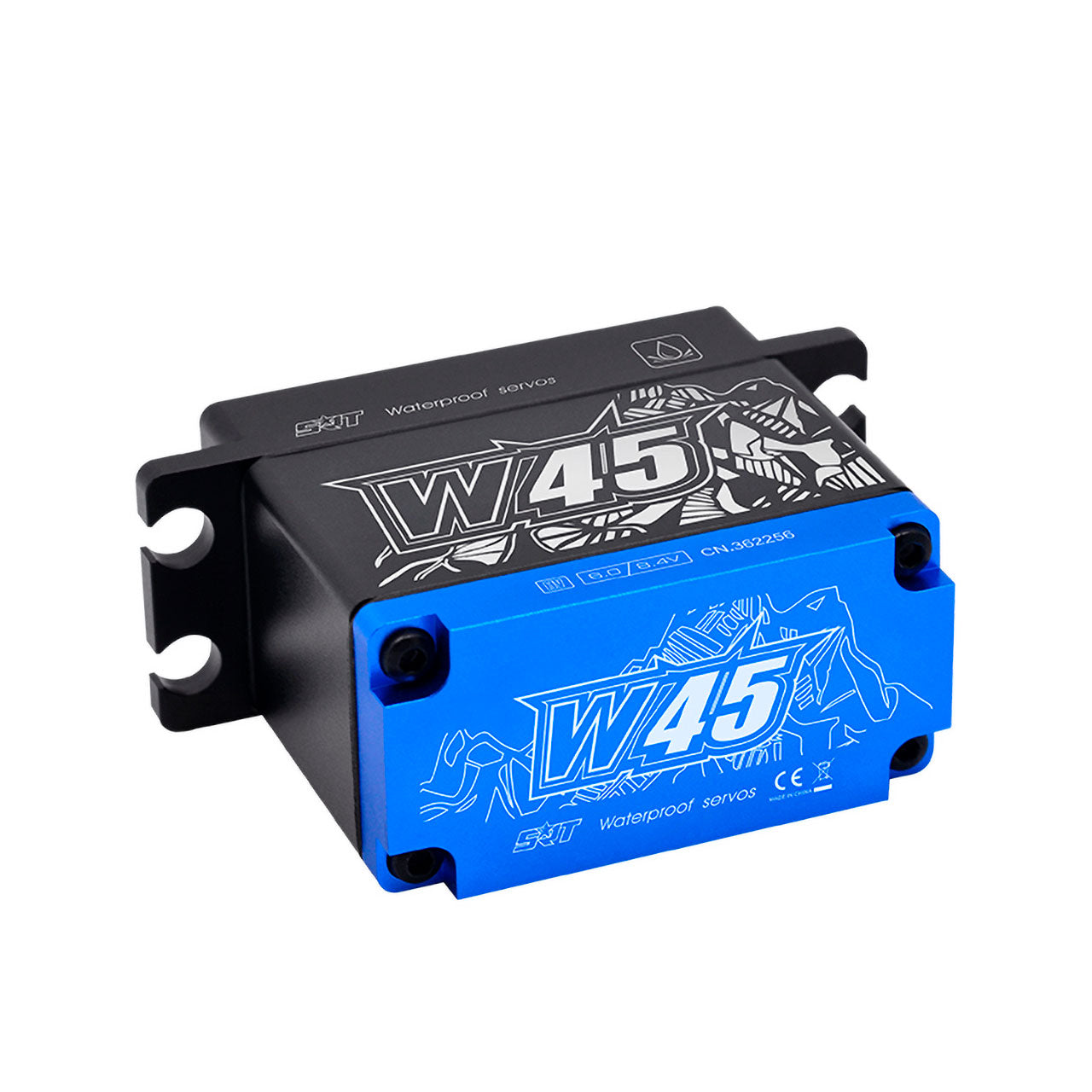

SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo
SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo

SRT W45 Waterproof (0.18s/45.0kg/8.4V) Coreless Servo

Price
€66.90
Tax included and shipping calculated at checkout
Out of stock

Frequently Bought Together

Stock Notification

Get notified when this product is available again
SKU: SRTW45

We Accept

American Express
Apple Pay
Mastercard
PayPal
Visa

Product Information

Features:
  • Ideal for 1/10 on road and 1/8 off road scale applications
  • Intermediate aluminum case
  • NMB dual main bearings
  • Superior waterproof
  • 25T output shaft
Specifications:
Type Digital
Bearing Dual
Motor Type Coreless
Gear Type Metal
Gear Material Titanium & Steel
Control System Pulse Width Control
Working Frequence 1520μs / 330hz
Operating Voltage dc6.0-8.4v
Operating Temperature Range -10 to + 60 degree
Operating Speed 6.0V: 0.20 sec/60 degrees at no load
7.4V: 0.19 sec/60 degrees at no load
8.4V: 0.18 sec/60 degrees at no load
Stall Torque 6.0V: 34.0kg.cm (472.2 oz/in)
7.4V: 40.0kg.cm (555.5 oz/in)
8.4V: 45.0kg.cm (624.9 oz/in)
Potentiometer Drive Direct Drive
Dimensions 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
Weight 82.5g (2.91 oz)
Connector Wire Length jr 360 mm
