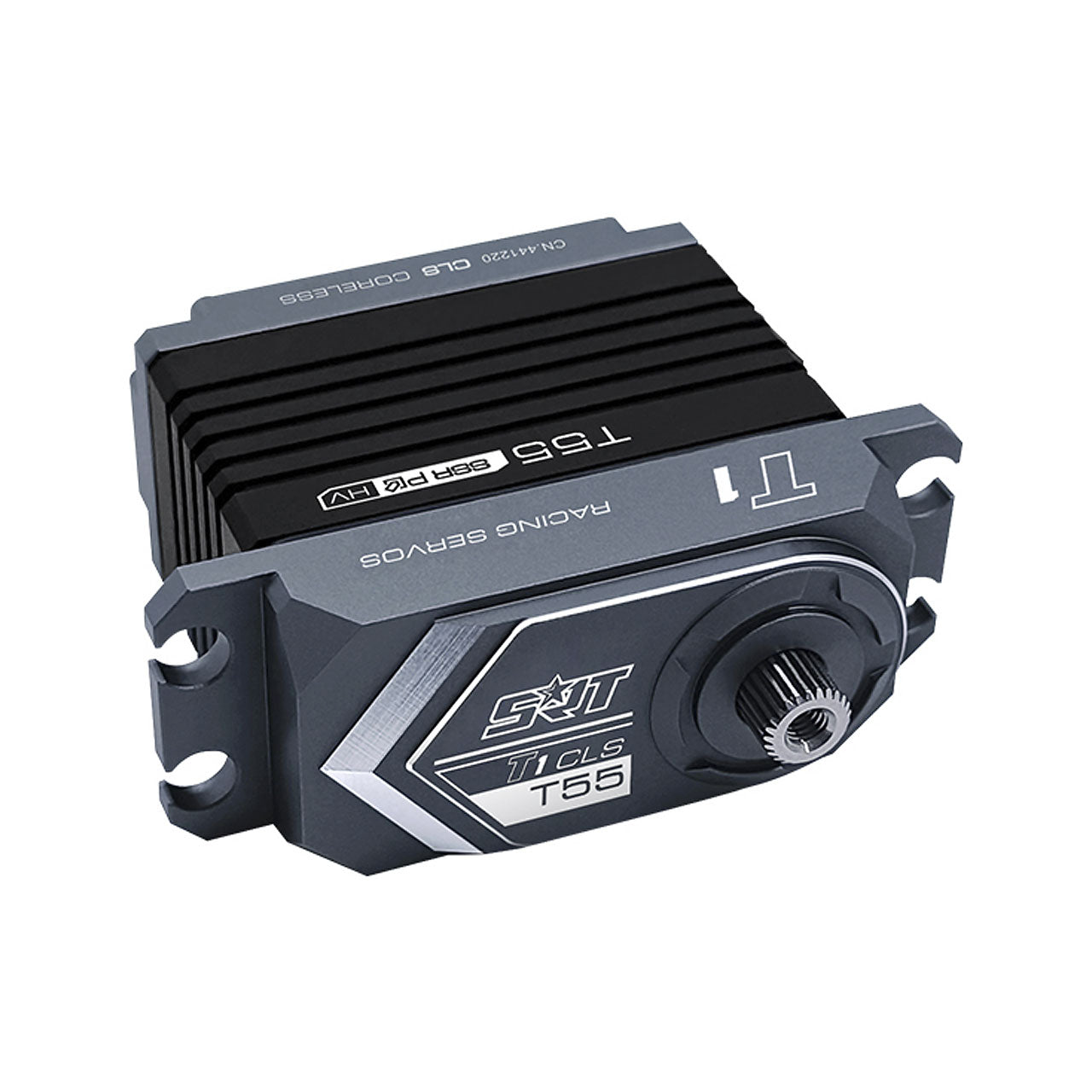

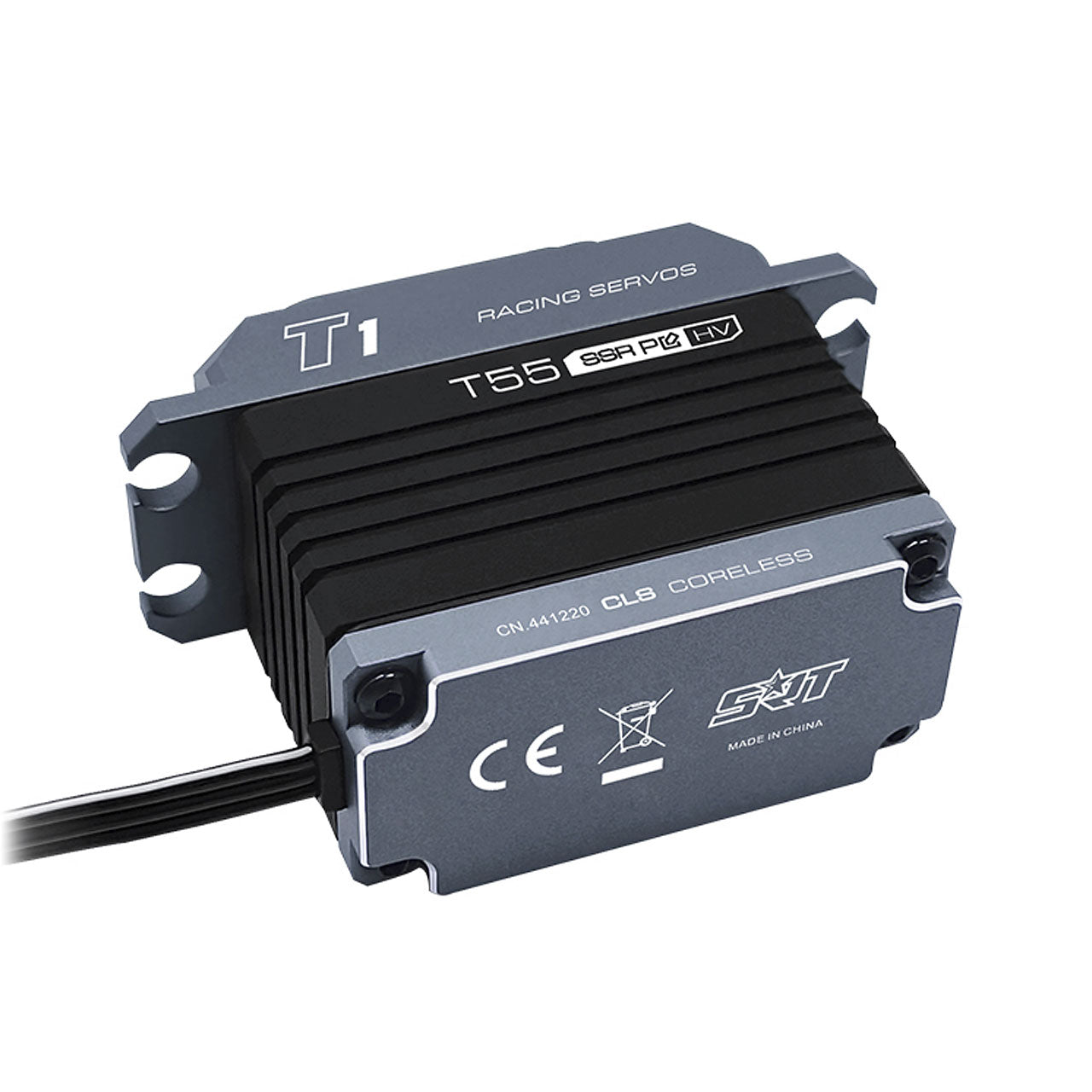

SRT T55 Corless Servo HV CNC aluminium case 50 kg

Product Description
  • Ideal for 1/8 on road scale and off road applications
  • Superior Holding Torque
  • Incredible efficiency and low power consumption
  • Standard dimension make it perfect for vehicles that can benefit from a high quality servo
  • CNC Machined aluminum case for exceptional cooling
  • Programmable High torque Brushless servo
  • SSR mode compatible
  • 25T output shaft
  • 2 μsec Dead Band
Specifications:
Type Digital
Bearing Dual
Motor Type Coreless
Gear Type Metal
Gear Material Steel & Aluminum
Control System Pulse Width Control
Working Frequence 1520μs / 330HZ
Operating Voltage DC 6.0-8.4V
Operating Temperature Range -10 to + 60 degree
Operating Speed (6.0v): 0.22 sec/60 degrees at no load
(7.4v): 0.20 sec/60 degrees at no load
(8.4v): 0.19 sec/60 degrees at no load
Stall Torque (6.0v): 43.0kg.cm (597.2 oz/in)
(7.4v): 50.0kg.cm (694.4 oz/in)
(8.4v): 55.0kg.cm (763.8 oz/in)
Potentiometer Drive Direct Drive
Dimensions 40.7 x 20.5 x 39.0 mm /1.60 x 0.81 x 1.54 in
Weight 81.0g (2.86 oz)
Connector Wire Length JR 300 mm
Vendor : SRT
€79.90 €93.00
