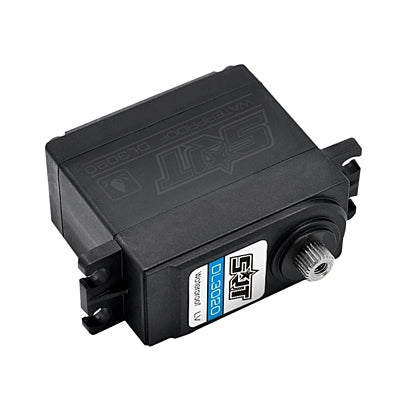

SRT SERVO DL3020 METAL GEAR WATERPROOF 20.0KG/0.11SEC @6.0V
SRT SERVO DL3020 METAL GEAR WATERPROOF 20.0KG/0.11SEC @6.0V
SRT SERVO DL3020 METAL GEAR WATERPROOF 20.0KG/0.11SEC @6.0V

SRT SERVO DL3020 METAL GEAR WATERPROOF 20.0KG/0.11SEC @6.0V

Price
€19.90
Tax included and shipping calculated at checkout
In stock and ready for shipping

Frequently Bought Together

SKU: DL3020

We Accept

American Express
Apple Pay
Mastercard
PayPal
Visa

Product Information

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.13 sec/60 degrees at no load
operating speed (6.0v): 0.11 sec/60 degrees at no load
stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 56.0g (1.98 oz)
connector wire length: jr 250 mm
