SRT DL3017 LV Digital Servo - 17kg/0.15 Sec @6v

Product Description

Key Features

  • Ideal for 1/10 and 1/8th on/off road applications
  • incredible efficiency and low power consumption
  • 1-Year Limited Warranty

Product Specifications

  • Weight: 65.0g (2.82 oz)
  • Potentiometer drive: direct drive
  • Operating voltage: dc4.8-6.0v
  • Control system: pulse width control
  • Gear Type: Metal
  • Bearing: Dual
  • Operating speed (4.8v): 0.17 sec/60 degrees at no load
  • Operating speed (6.0v): 0.15 sec/60 degrees at no load
  • Stall torque (4.8v): 15.5kg.cm (215.2 oz/in)
  • Stall torque (6.0v): 17.0kg.cm (236.0 oz/in)
  • Type: Digital
  • Motor Type: Brushless
  • Gear Material: Titanium & Copper
  • Working frequency: 1520μs / 330hz
  • Operating temperature range: -10 to + 60 degree

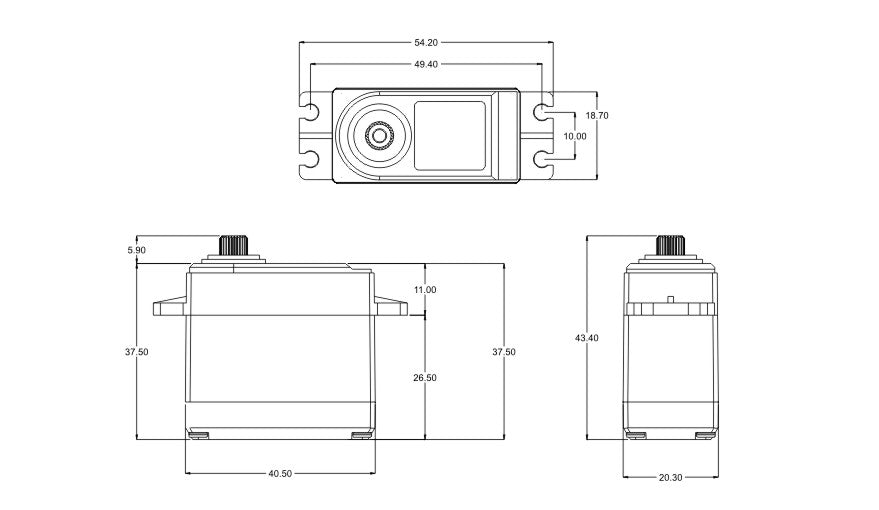

  • Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
  • Connector wire length: JR 250mm

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Vendor : SRT
