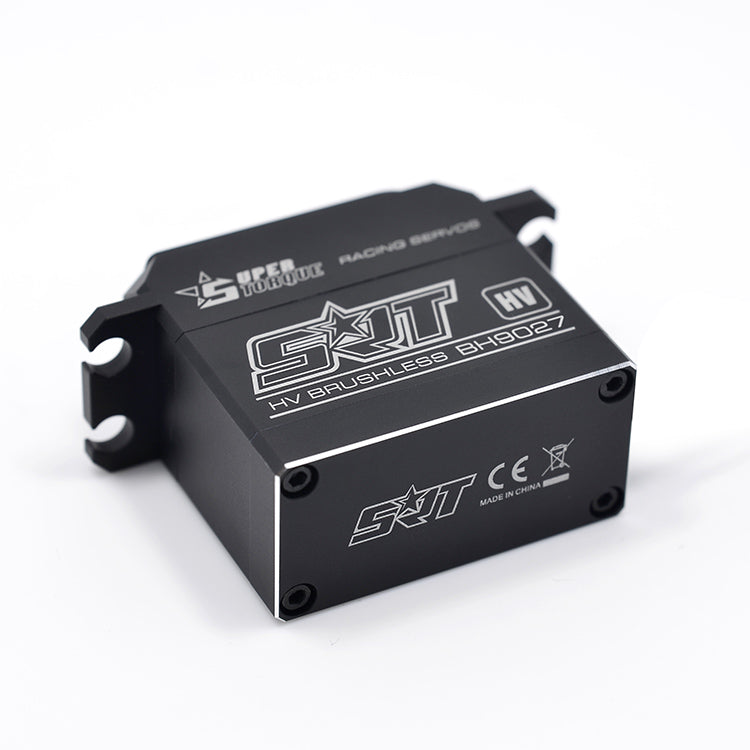

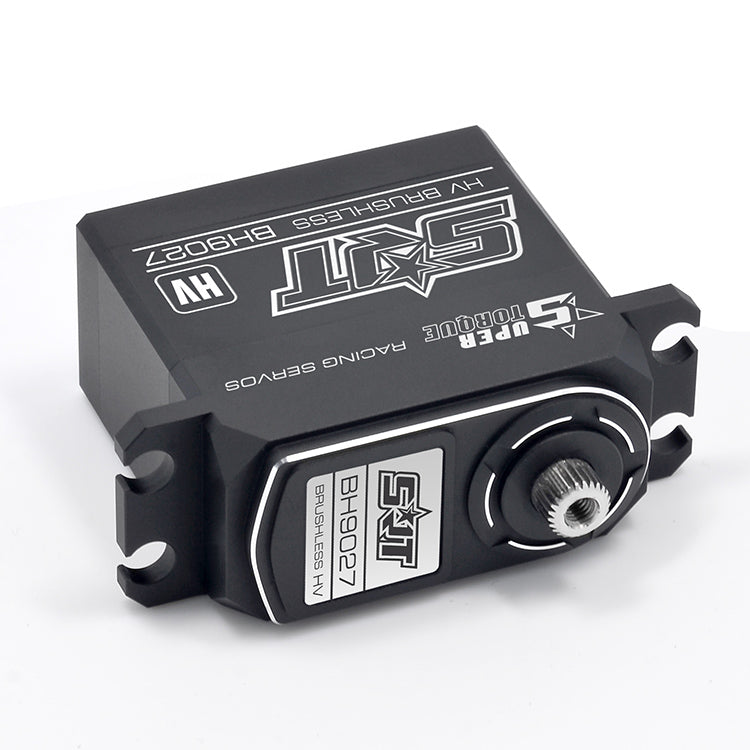

SRT BH9027 HV Brushless Servo - 25kg/0.08 Sec @7.4v - Full Alloy Case

Product Description

KEY FEATURES

& Ideal for 1/8 on road and 1/8 off road scale applications
& Superior Holding Torque
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty

PRODUCT SPECIFICATIONS


Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.075 sec/60 degrees at no load
stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
potentiometer drive: direct drive

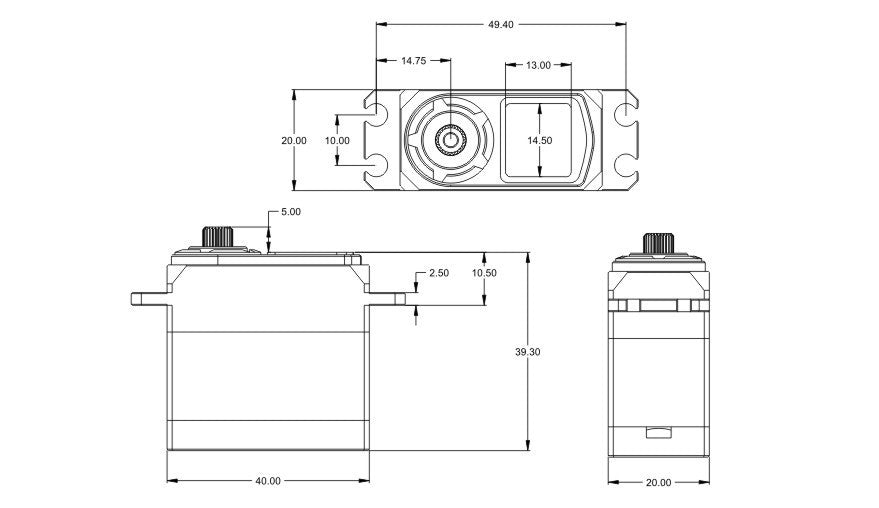

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm


SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Vendor : SRT
€94.90
