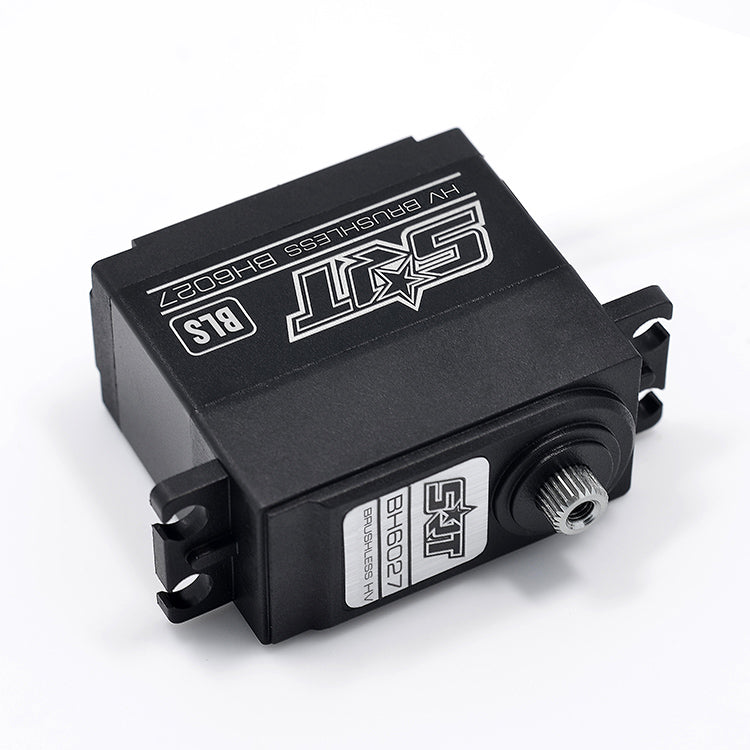

SRT BH6027 HV Brushless Servo - 25kg/0.08 Sec @7.4v - Semi Alloy Case

The latest generation of high quality SRT servos provides you with the ultimate performance and reliability possible for many different applications.

Key Features

• Ideal for 1/10 On/Off Road scale applications
• Superior Holding Speed
• incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• NMB dual main bearings
• 25T output shaft
• HD 4096 Resolution
• 2 μsec Dead Band
• 1-Year Limited Warranty

Product Specifications

• Weight: 75.0g (2.82 oz)
• Potentiometer drive: direct drive
• Operating voltage: dc6.0-8.4v
• Control system: pulse width control

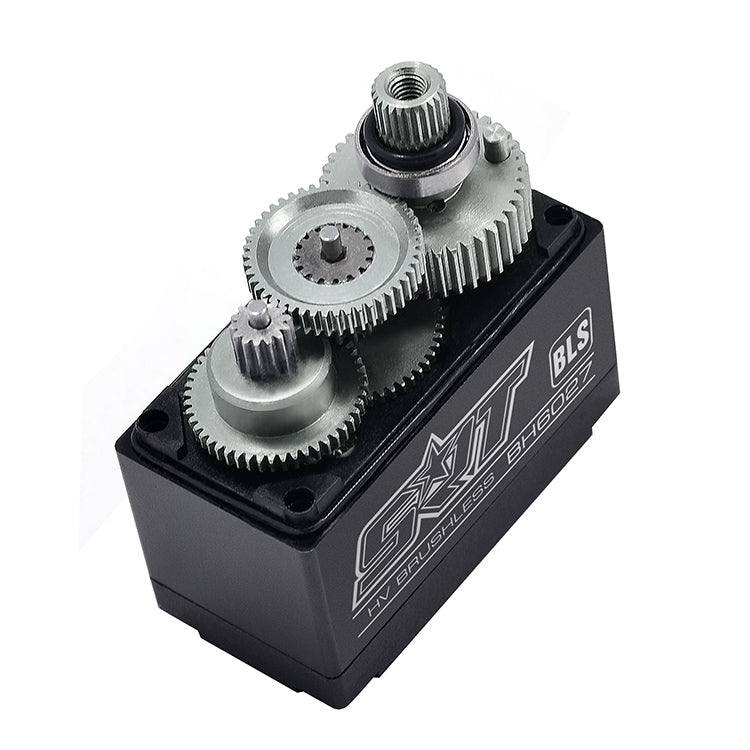

• Gear Type: Metal
• Bearing: Dual
• Operating speed (6.0v): 0.10 sec/60 degrees at no load
• Operating speed (7.4v): 0.08 sec/60 degrees at no load
• Operating speed (8.4v): 0.075 sec/60 degrees at no load
• Stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
• Stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
• Stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
• Type: Digital
• Motor Type: Brushless
• Gear Material: Titanium & Alu
• Working frequency: 1520μs / 330hz
• Operating temperature range: -10 to + 60 degree

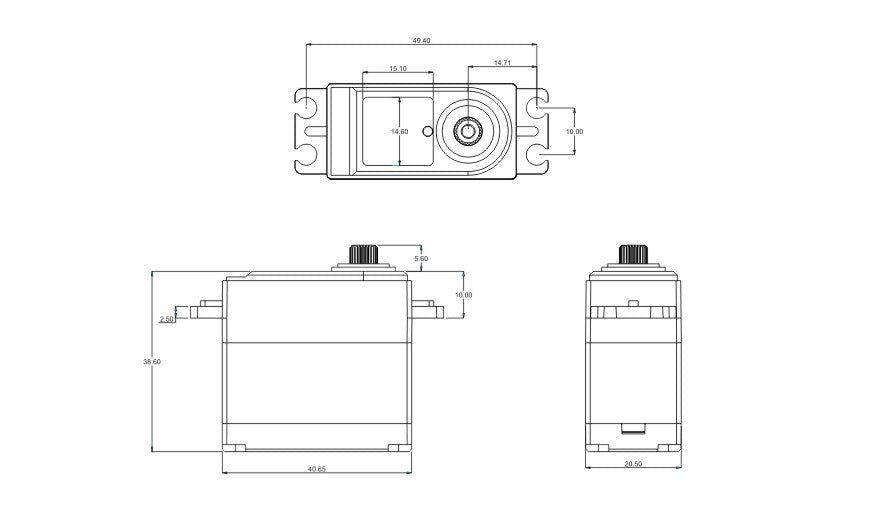

• Dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
• Connector wire length: JR 250 mm
