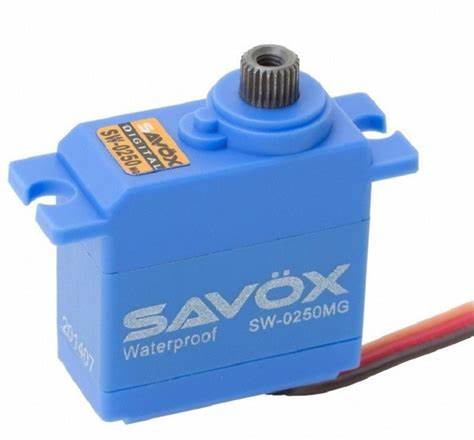

Savöx SW-0250MG 5kg/0.11 Digital Waterproof Micro Servo SW-0250MG
Savöx SW-0250MG 5kg/0.11 Digital Waterproof Micro Servo SW-0250MG

Savöx SW-0250MG 5kg/0.11 Digital Waterproof Micro Servo SW-0250MG

Price
€36.90
Tax included and shipping calculated at checkout
Out of stock

Frequently Bought Together

Stock Notification

Get notified when this product is available again

SKU: SW0250MG

We Accept

American Express
Apple Pay
Mastercard
PayPal
Visa

Product Information

Micro Servo with metalgears



performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles.

Features:

  • Strong metal gear train for added durability
  • Waterproof case design
  • Ideal for cars and boats subject to water or snow
  • Ideal for Traxxas 1/16 vehicles


Specifications:

  • Torque @4.8V: 3.5kg/cm
  • Torque @6V: 5kg/cm
  • Speed @4.8V: 0.14 sec/60 deg
  • Speed @6V: 0.11 sec/60 deg

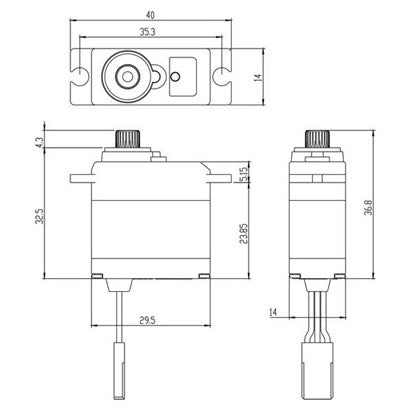

  • Dimensions L x W x H: 29.5 x 14.0 x 32.5mm
  • Weight: 25g


Technical Details:

  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 80mA @4.8V, 100mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1250mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
