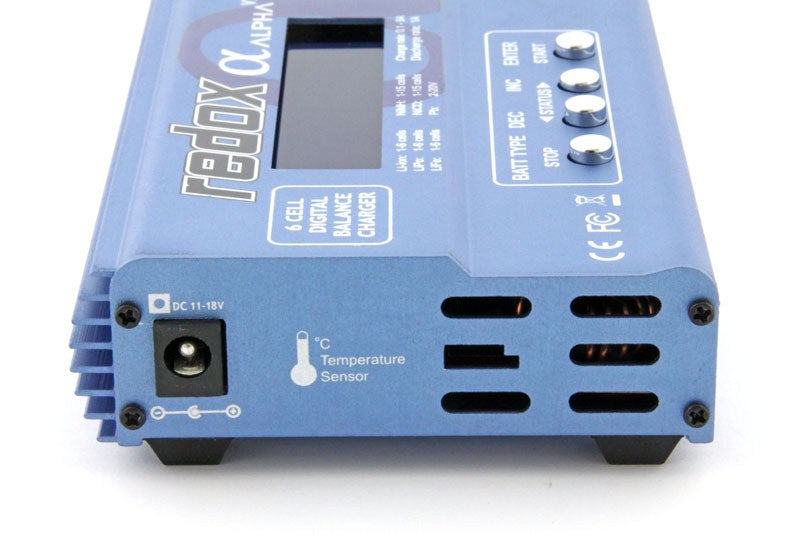

The new, improved version of the popular Alpha charger from Redox. Redox Alpha V2 have the new updated Software for long and stable operation. In addition, at the top of the charger is mounted a large heat sink for conducting heat well.
Characteristics:
Dimensions: 134 x 86 x 26 mm
Operating Voltage: DC 11.0 ~ 18.0 V
Max. Charge power 50W
Max. Discharge power 5W
Charging current: 0.1 ~ 5.0A
Discharging current: 0.1 ~ 1.0A
Current balancing: 300 mAh / cell
Number of supported cell NiCd / NiMH 1 ~ 15 cells
Number of supported target Li-Po/Fe/Ion: 1 ~ 6 target
Supported batteries Pb: 2 ~ 20V
Weight (without cable) 400 g
Built-in charger memory: max. 5 packages
Cycle feature packages
Four programming buttons
Built-in socket:
balancer socket for 2s, 3s, 4s, 5s, 6s
slot at Gold 4 mm plugs
Jack (12V DC)
slot at the optional temperature sensor

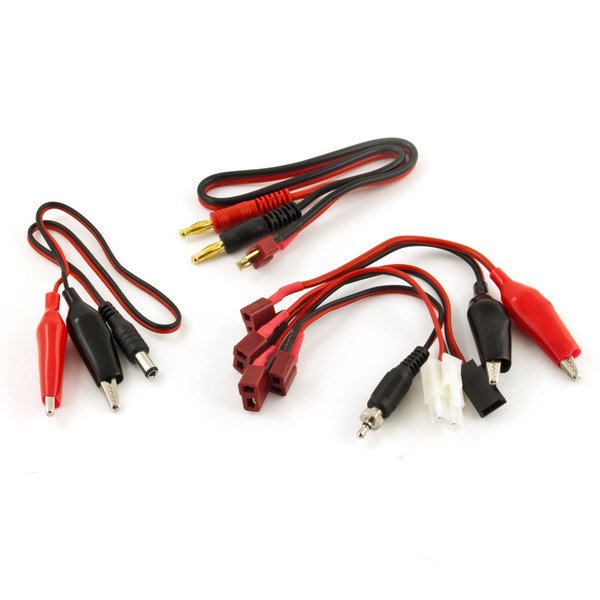

Contents:
Redox Alpha V2 charger
12V DC Power Cable (Jack - Alligator Clips)
1 x 4 mm Gold Adapter - Plug DEAN
Additional adapters extending Gold 4 mm adapter - Plug DEAN:
1 x Adapter Jack Dean - Alligator Clips
1 x Adapter Socket DEAN - Power servo (Futaba type)
1 x Adapter Jack Dean - dummy spark plug (for charging clips 1,5 V)
1 x Adapter Jack Dean - BEC Connector
User manual
