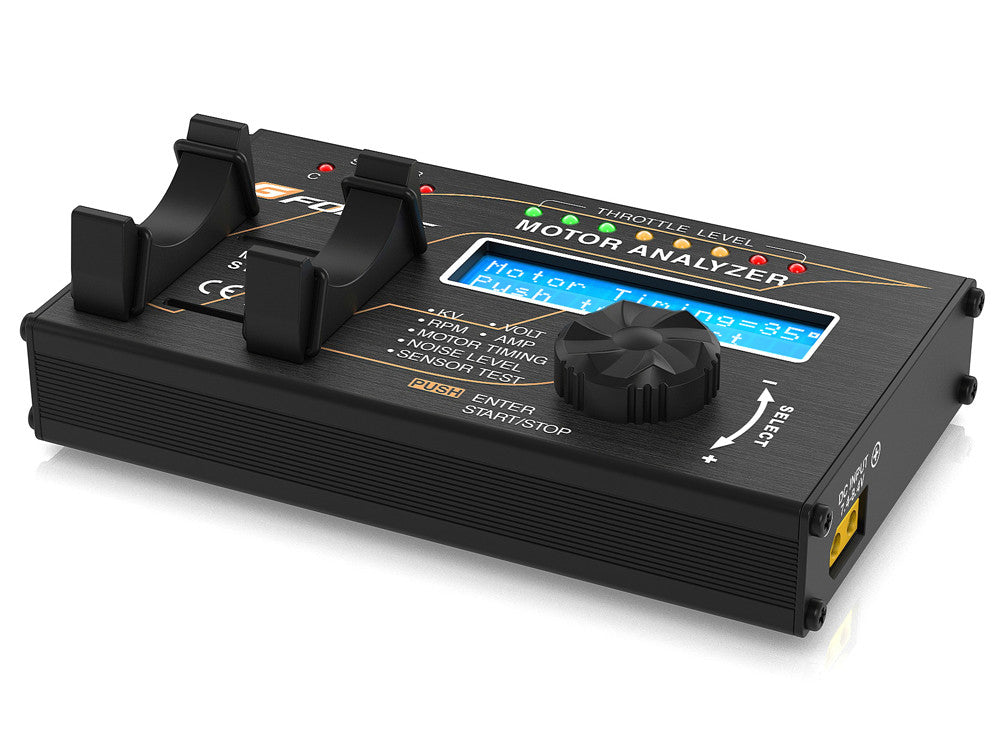

New from GForce comes the motor analyser, a device to check multiple parameters of car and flight brushless motors. Housed in a sturdy case with a blue backlit display, the motor analyser allows to check the motor’s KV rating, voltage and amp draw, as well as the sensors. A timing test helps to precisely adjust the timing level while a noise level test can give a hint on the motor’s ball bearing condition. The motor tester is made for the use with 7.4V to 8.4V input power sources and it comes with a set of adapter wires for the motor and power supply.
Specification
| Input Voltage |
7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery) |
| LCD Display Screen |
Blue Backlight Background, White Text, 16 Characters X 2 Lines |
| KV Value Accuracy |
+/- 3% |
| Motor Timing Accuracy |
+/- 4% |
| Noise Level Measurement Range |
60dB - 120dB |
| Dimension |
136.5mm x 80.6mm x 24.5mm |
| Net Weight |
282gram (Without Cabel) |
| Supported Motor |
Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles) |
