Product Information

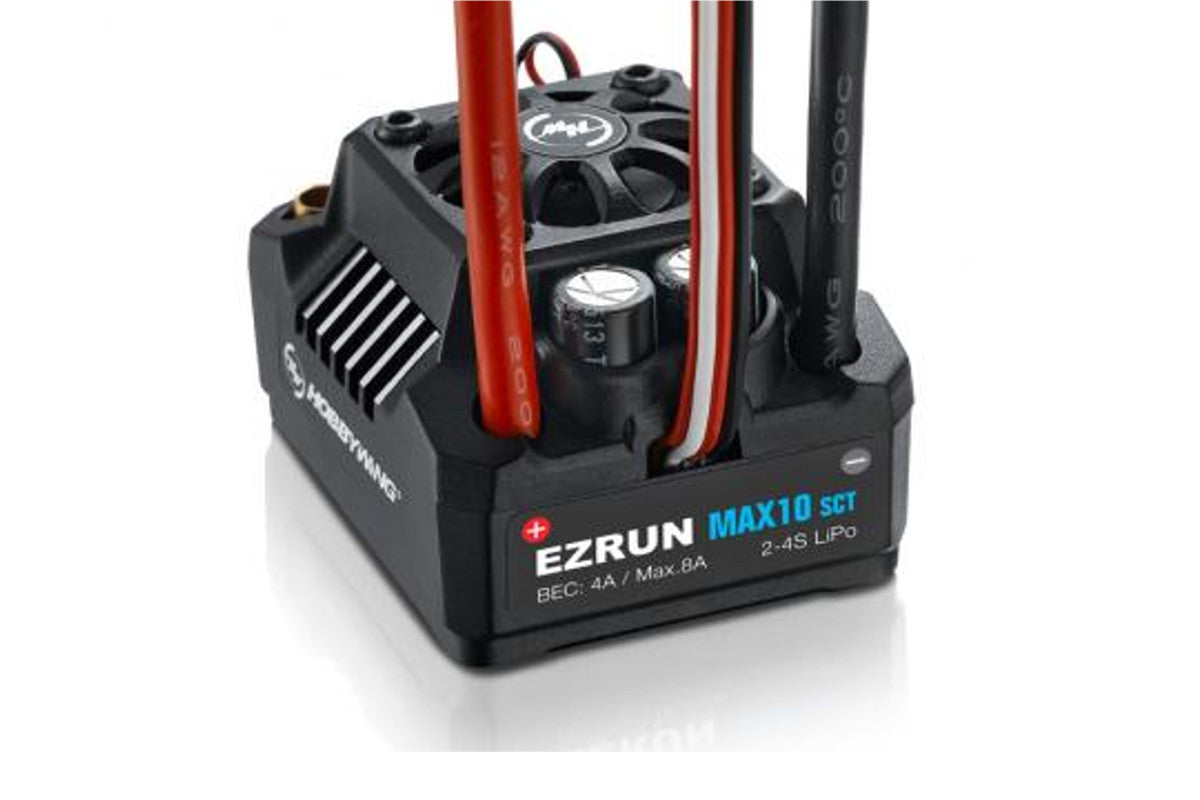

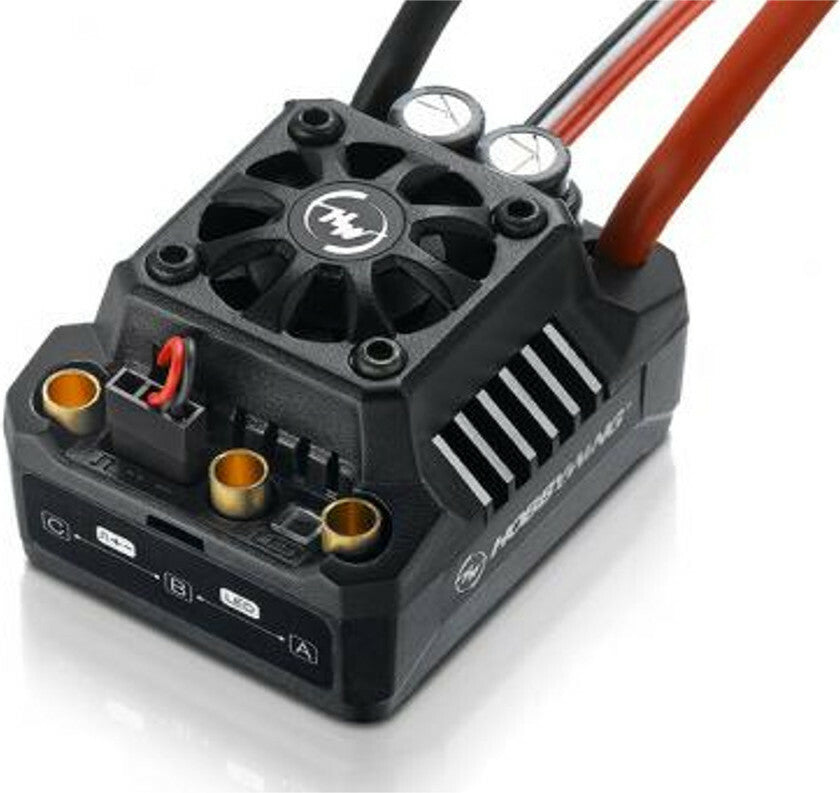

Hobbywing Ezrun Max10 SCT Esc

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even  the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian.
The user will have the choice of adusting the ESC parameters as per his perference and ability.

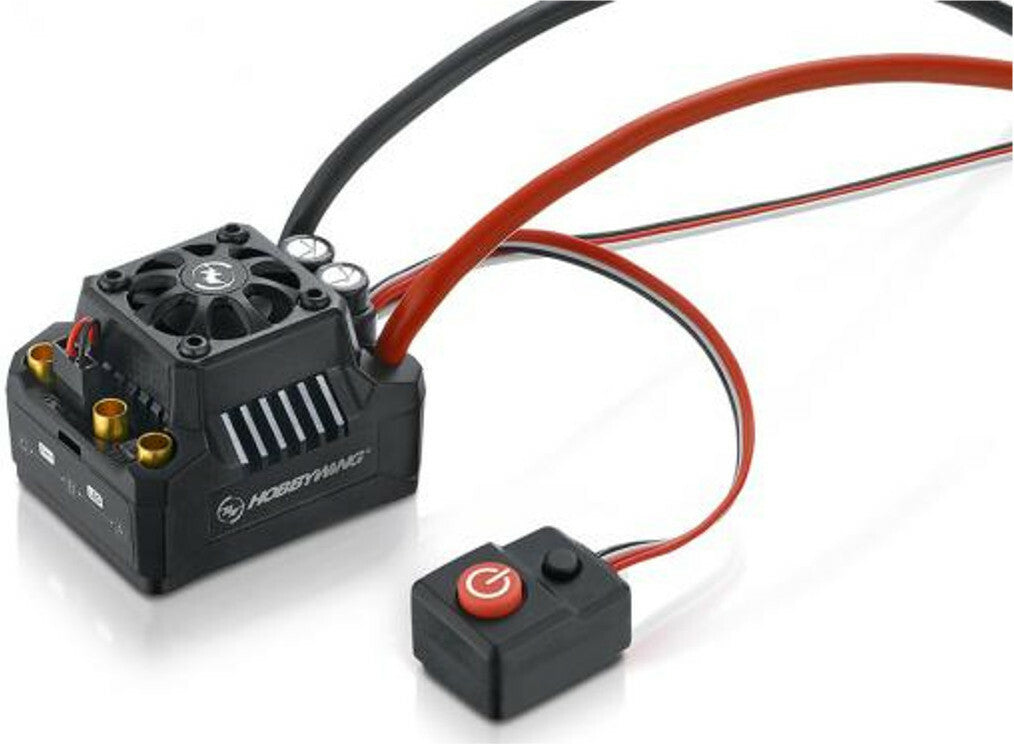

Advanced and Secure Electronic Switch

The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-prood and shock-resistant design.

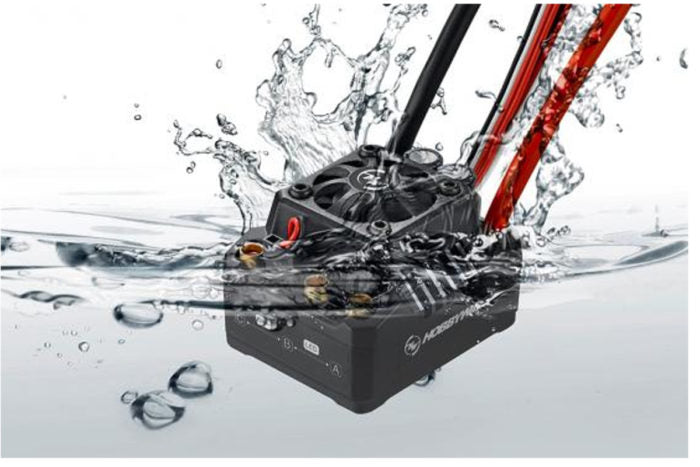

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

Innovative Filter Capacitor Thermal Protection

The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect capacitors from exploding and causing irreversible damage to the ESC due to overload.

Wide Applicability

This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.


Scale:   1:10

Sensor:  No

Brushless:  yes

Continous Current: 120A

Peak Current:   760A

KV Rating:

*2S LiPo: KV?6000

*3S LiPo:KV?4000

*4S LiPo:KV?3000(36XX Series of Motors)

Input Voltage: 2-4S  Lipo / 6-12 Cell Nimh

BEC: Switch Mode:  6V / 7.4V   3A

Input connectors: XT90

Output Connectors: 4.0mm Bullet Female

Size:  49.0x39.5x34.7mm

Weight: 105g

Read The Full Spec HERE
