Blade Buggy BRUSHED 4WD 1:10, RTR /22317
Blade Buggy BRUSHED 4WD 1:10, RTR /22317
Product Description

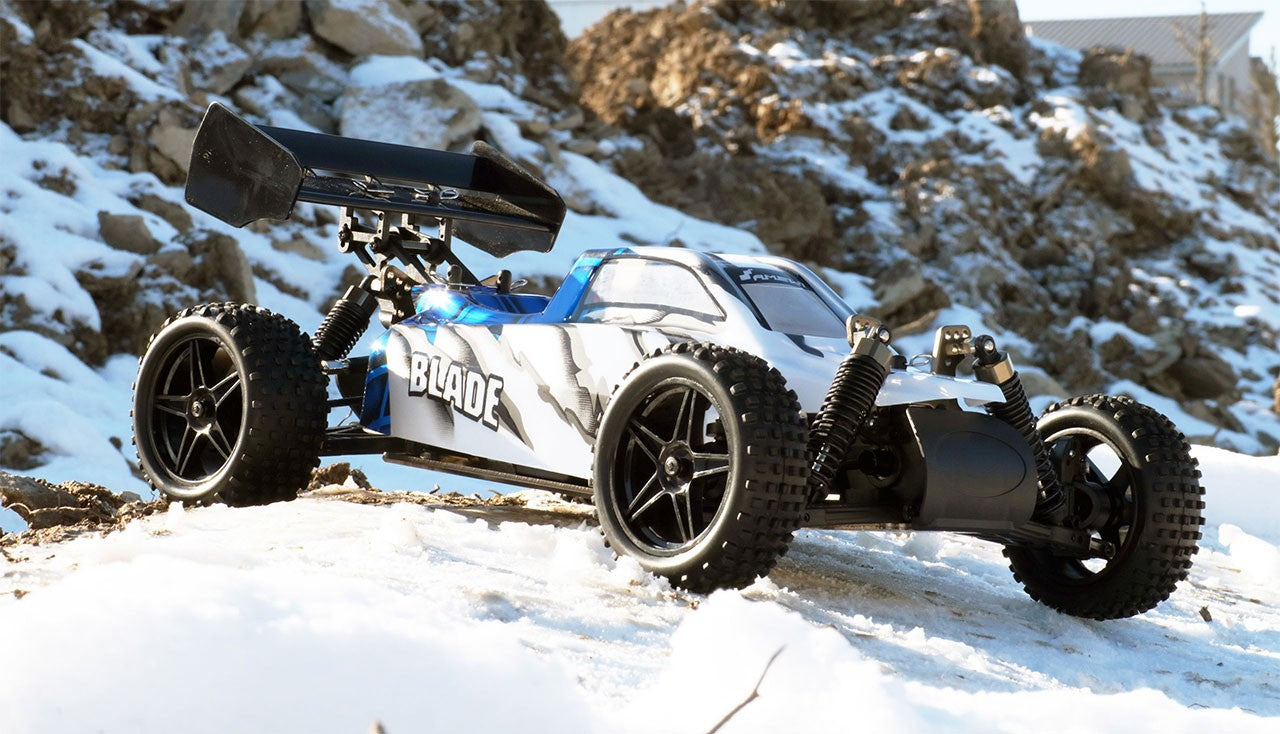

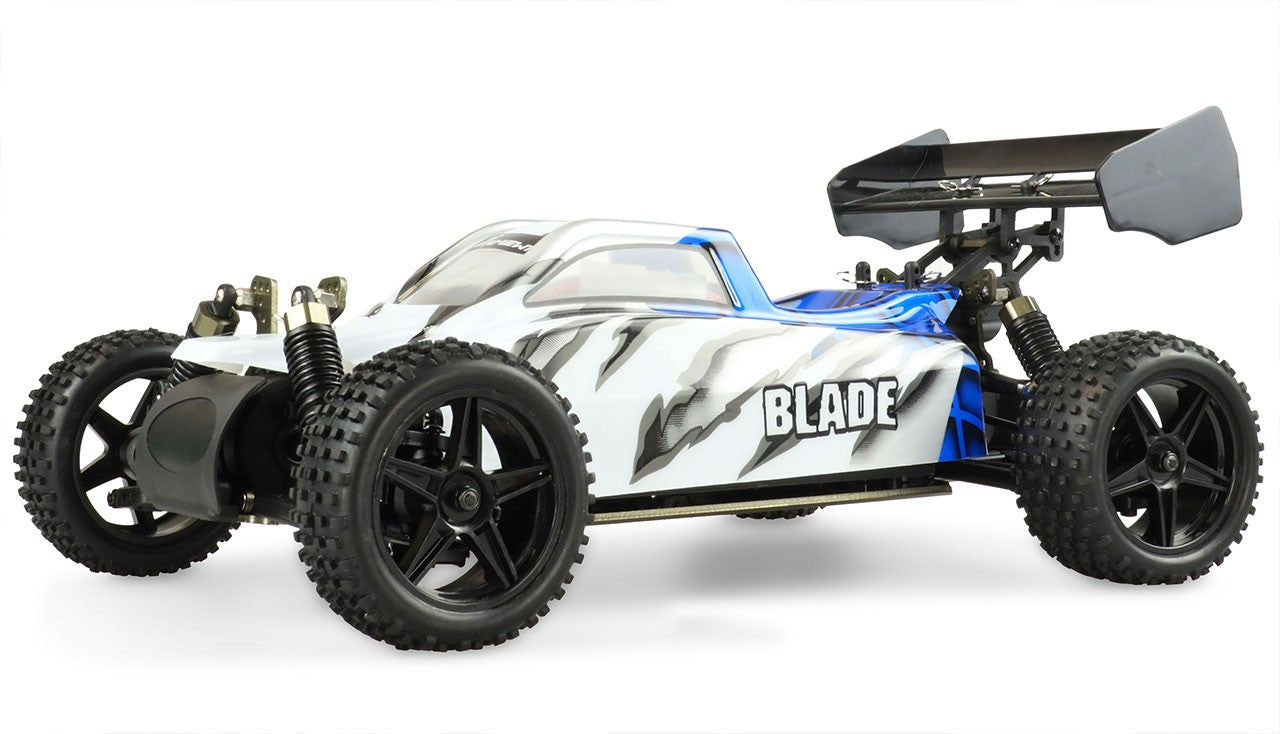

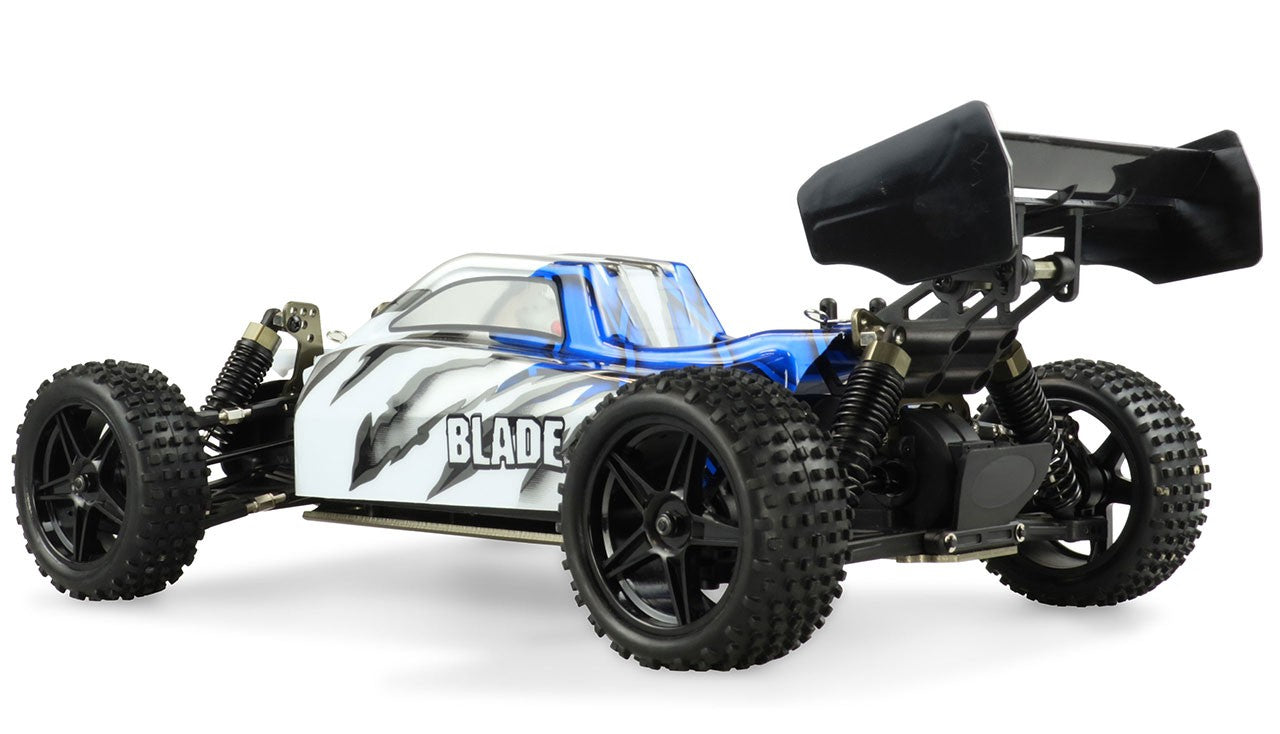

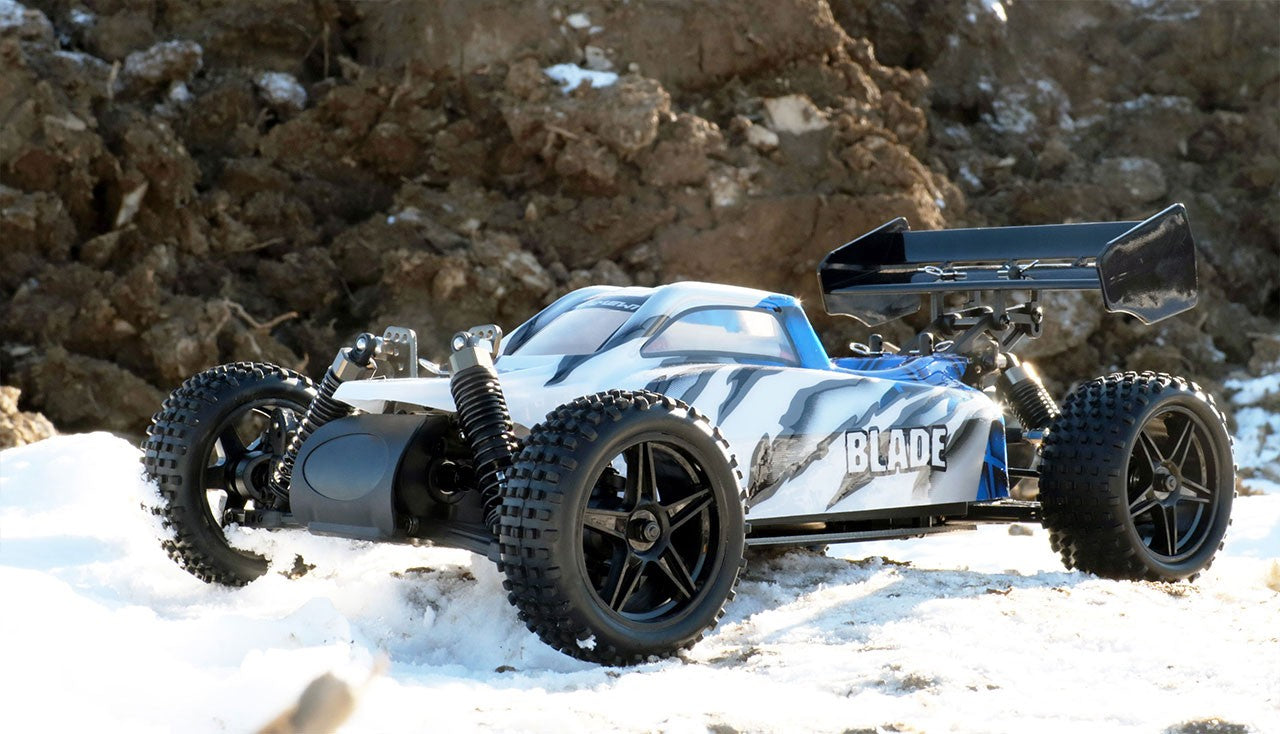

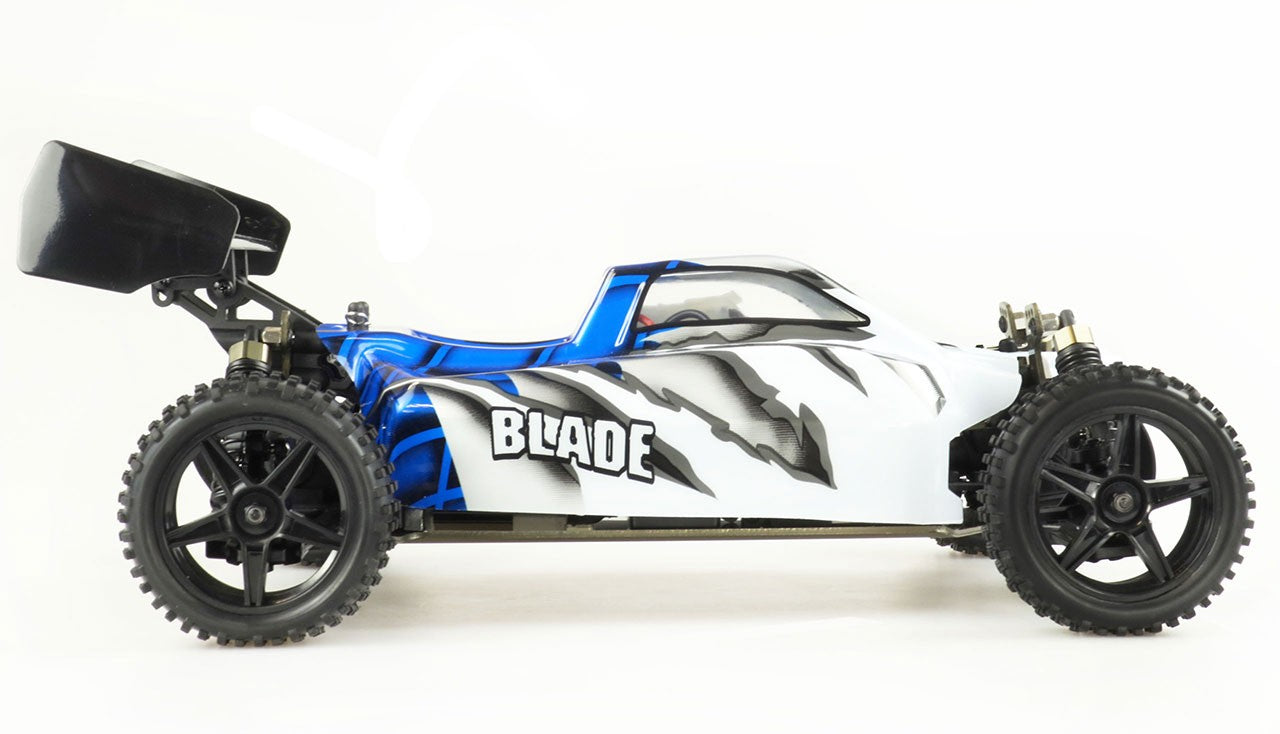

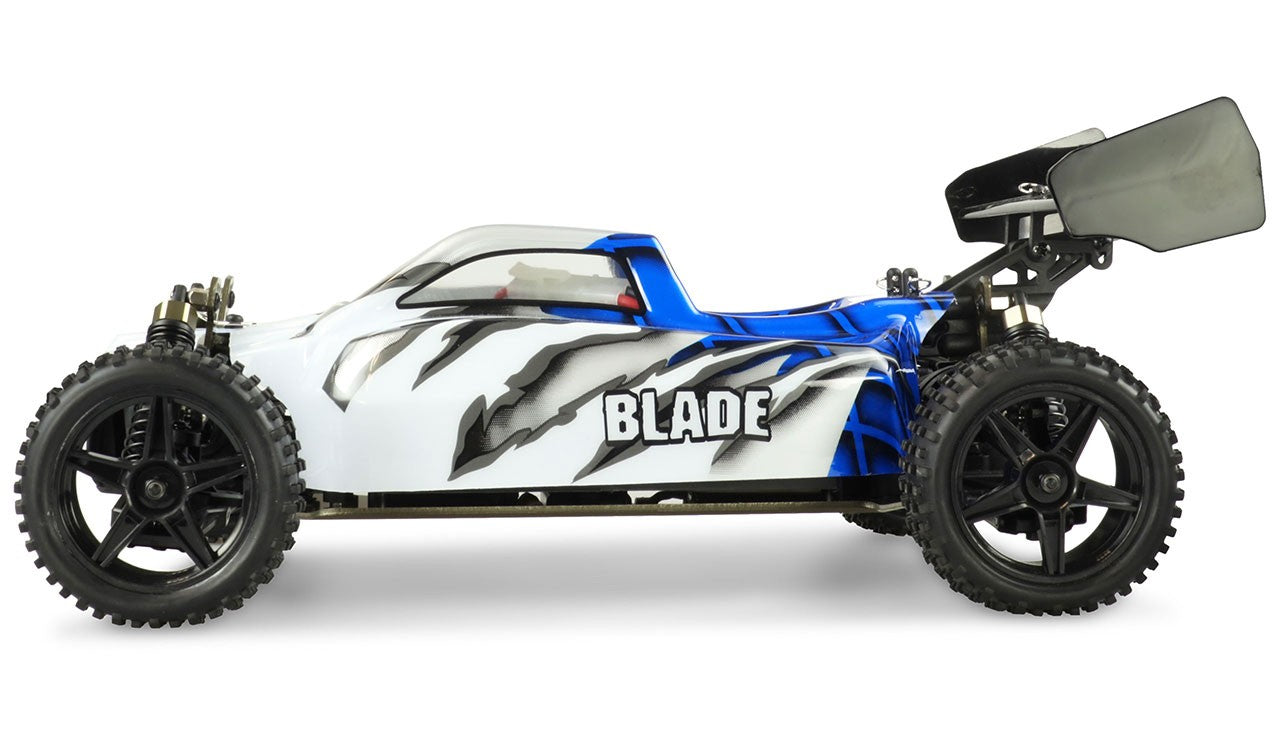

Blade, the ultimate development of the proven and popular booster!
Compared to the booster, the durability was increased again in which we replaced the chassis chassis with a high-quality aluminium!

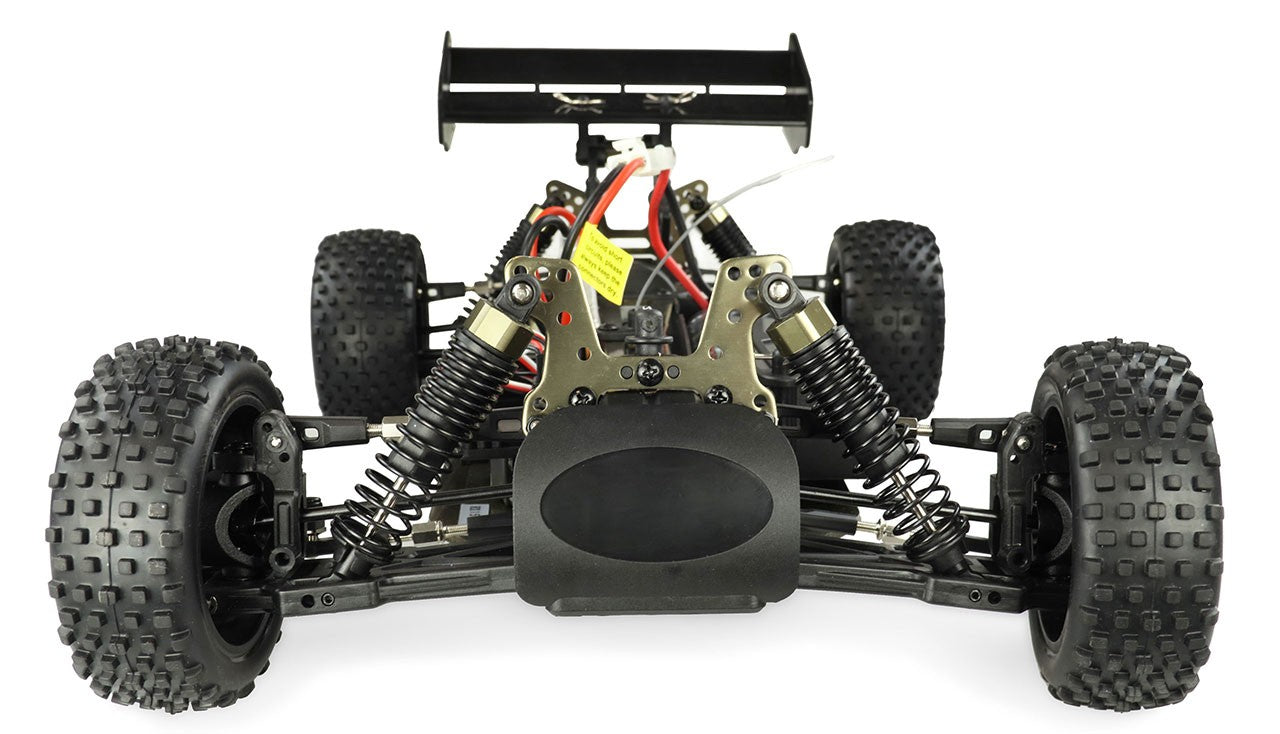

The blade equipped with a fully adjustable chassis, front & rear shocks feature a suspension made of aluminum, and thanks to the supplied clips can be set.
Thanks to the 4WD 4WD in the teamwork fights with the grippy wheels the blade through almost any terrain and thanks to the waterproof electronics, also no puddle can stop him.
Features:
High-quality aluminum chassis
Aluminum top deck

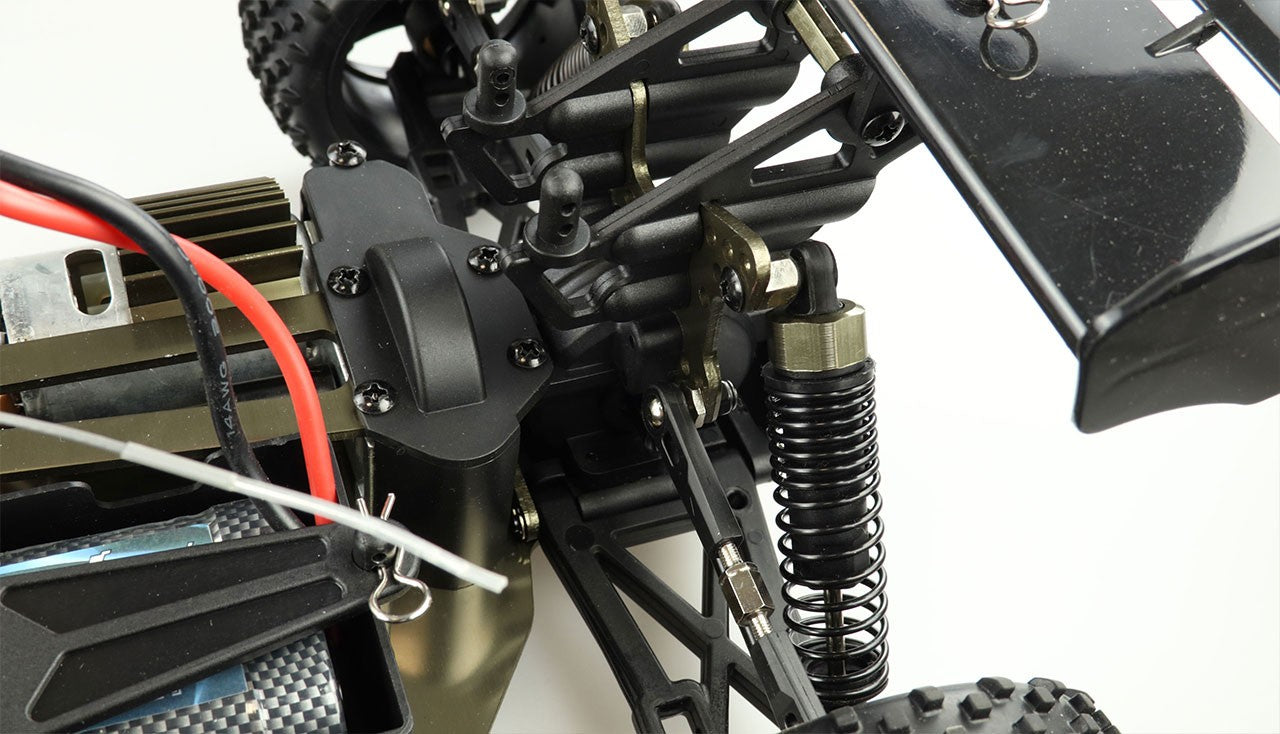

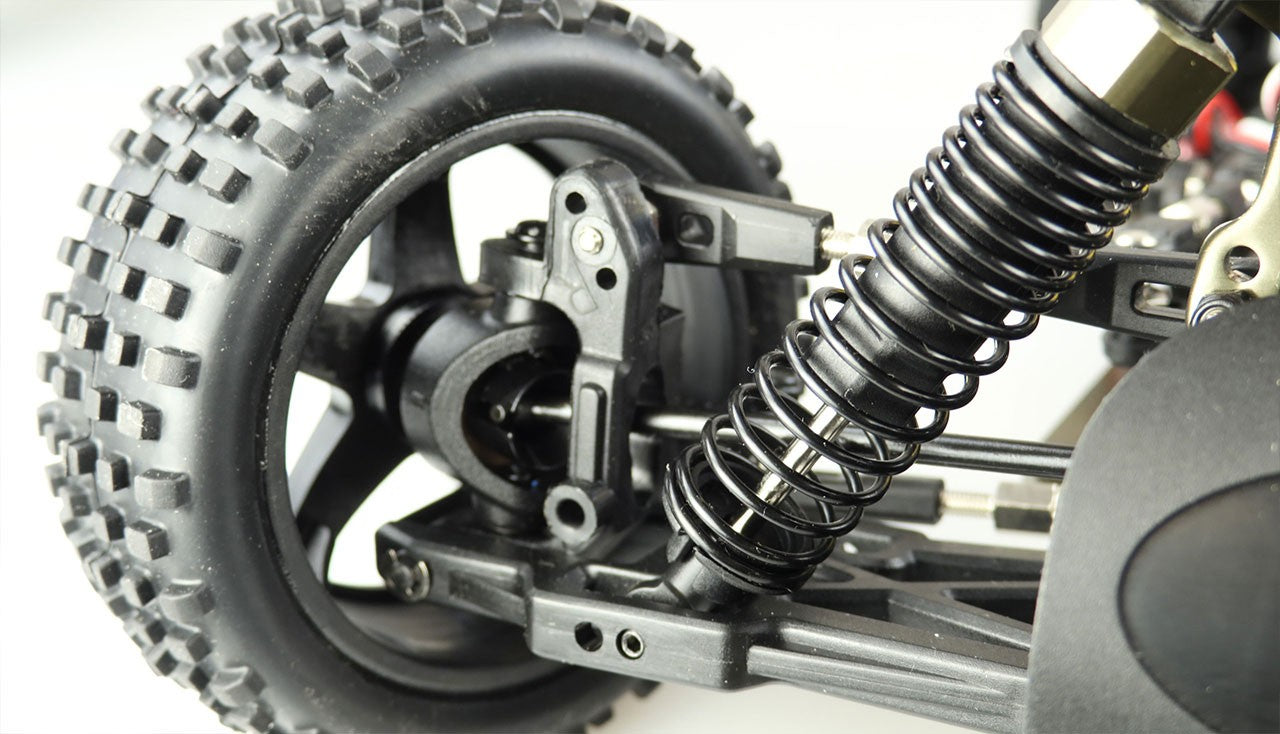

Oil pressure shock absorber with aluminum suspension

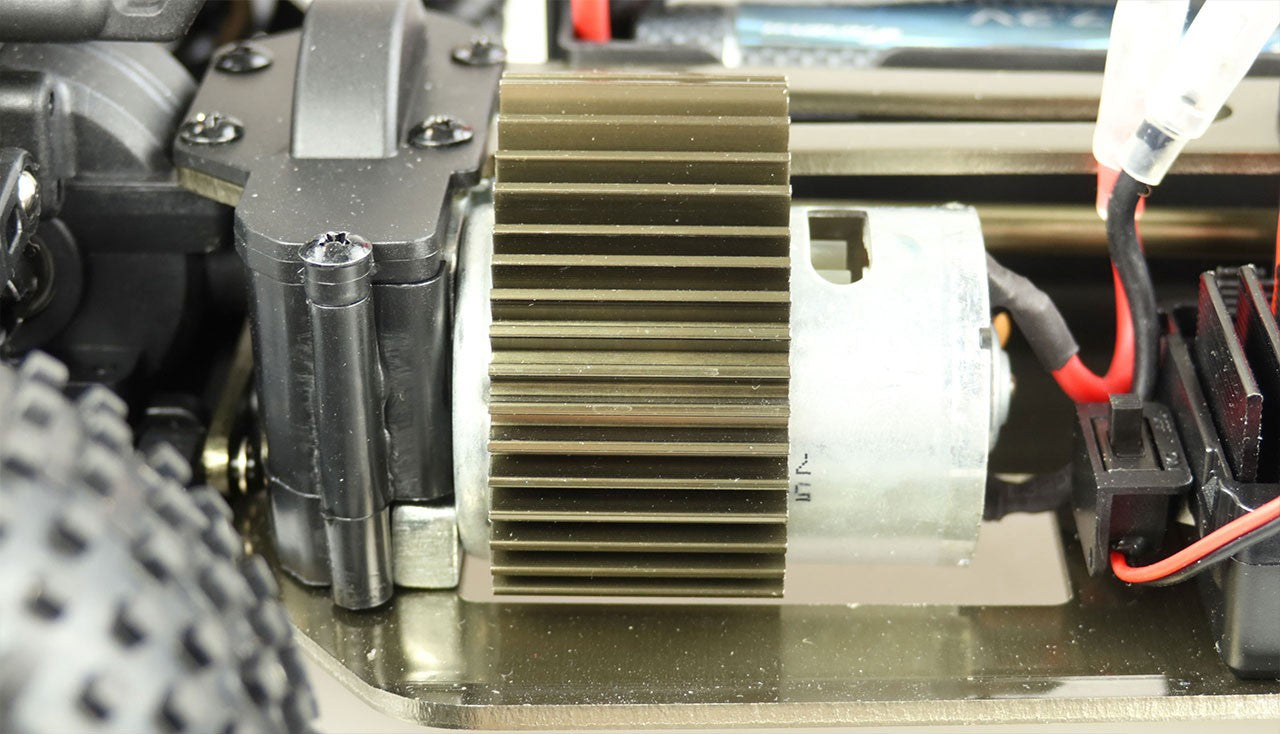

Brushed motor 540 23T

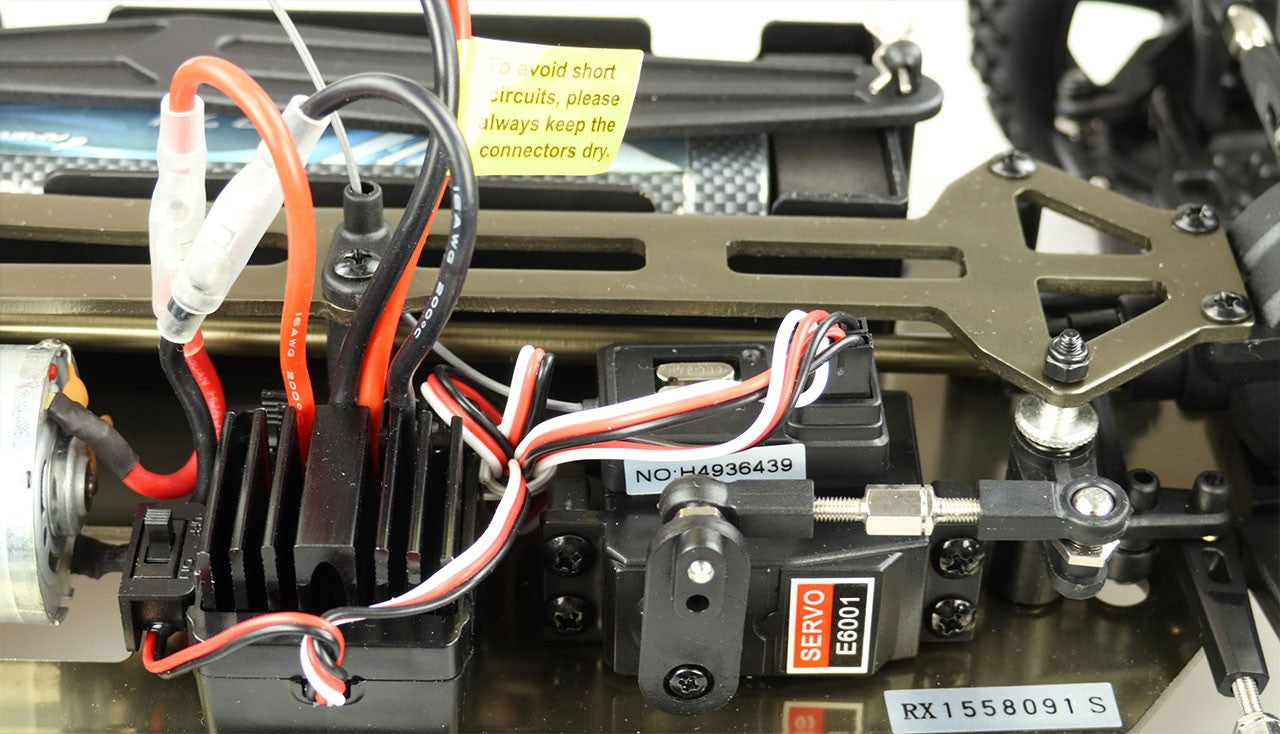

Hobbywing 40A ESC waterproof
Steel-differentials front & rear
With 2-channel 2.4 GHz remote control
Specifications
Dimensions (Lxwxh): 400x250x160mm
Weight: 1.6 kg (without battery)
Wheelbase: 275 mm
Wheel diameter: 86mm
Wheel width: 29 mm front / 32 mm rear

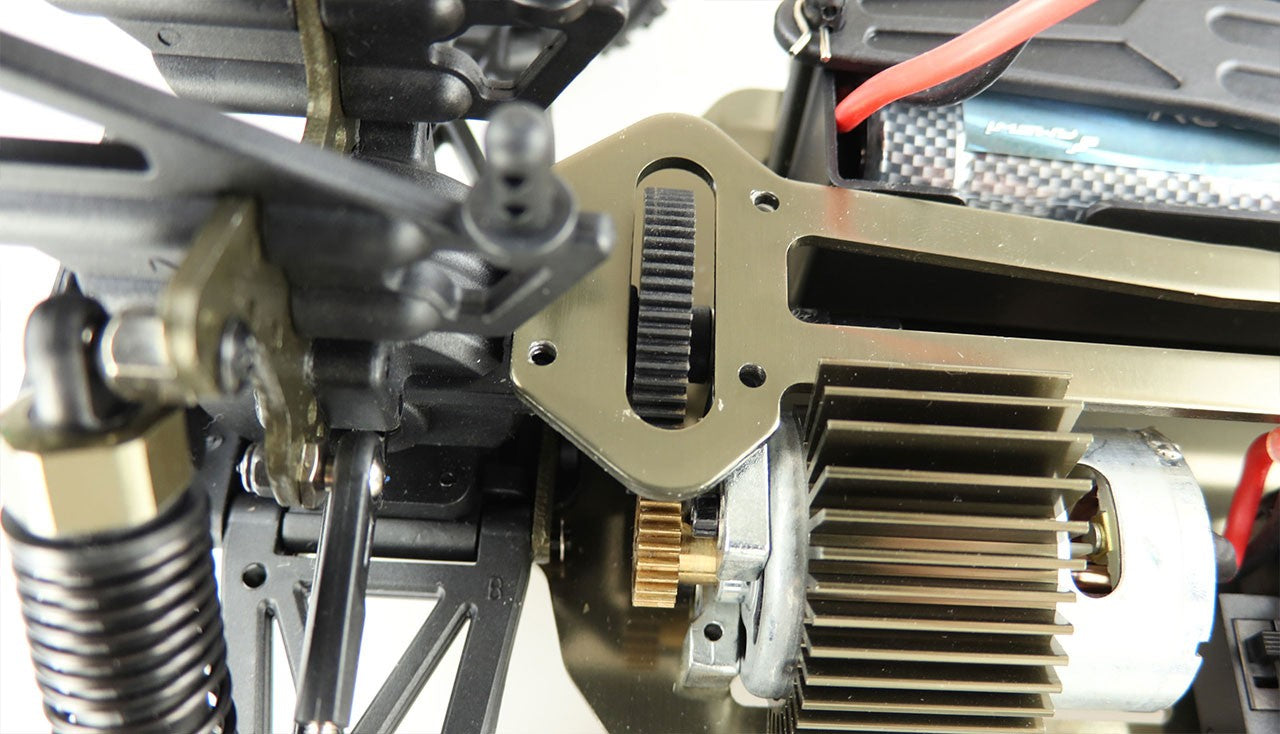

Gear ratio: 8,133: 1
Battery: 7.2 V 2000mAh NiMh stick - pack
Technical data controller:
Continuous load: 40A
Short time load: 180A forward / 90A backwards
Functions: Forward/reverse/brake
BEC output: 5V / 2A
Operating voltage: 7.2 V - 7.4 V
Motor limit: 12 T 540 or 550 @ 2s LiPo
Battery connection: Tamiya
Dimensions: approx. 46.5 x34x 28.5 mm
Weight: 65g
Waterproof: yes
Specifications Engine:
Windings: 23
Current: 15A
Voltage: 7.2 V - 7.4 V
Size: 540
Shaft: 9.6 mm / Ø 3.17 mm
Dimensions: Length: 54mm / Ø 3 6.0 mm
Technical data servo SP6001:
Torque: 6.0 kg @ 6V
Time: 0.18 sec / @ 6V
Transmission: Plastic
Sprocket: 25 teeth
Connector system: JR
Dimensions: 40,1 x 20.4 x38mm
Voltage: 4.8 V - 6.6 V

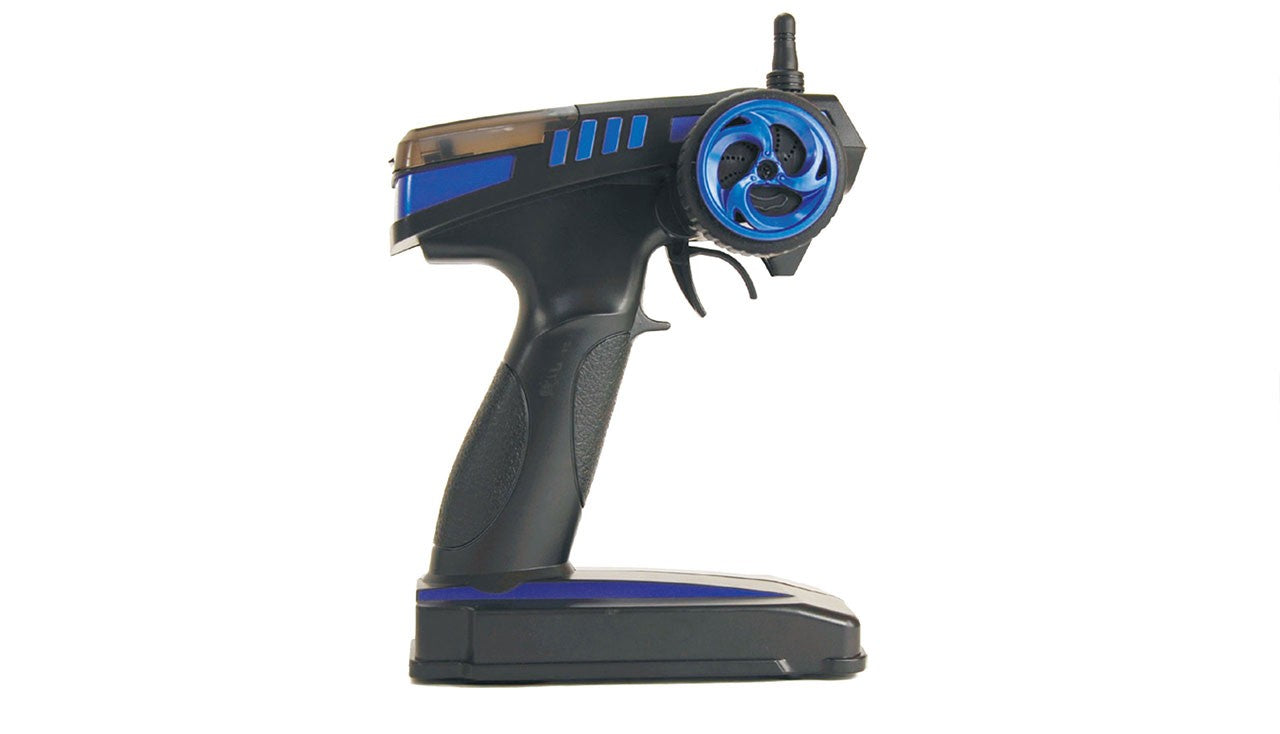

Technical data transmitter GT-2:
Channels: 2
Reverse function: Yes
Trim throttle/brake: Yes
Trim Steering: Yes
Dual rate Steering: Yes
Dual rate gas / brake: no
Required batteries: 8 x AA Mignon
Receiver: 3 channel (waterproof)
Delivery
RC buggy blade
2.4 GHz pistol remote control
NiMh battery pack
Charger
Damper clips
Detailed instructions with pictures
Vendor
:
AMEWI
Default Title - Sold Out
€184.90
