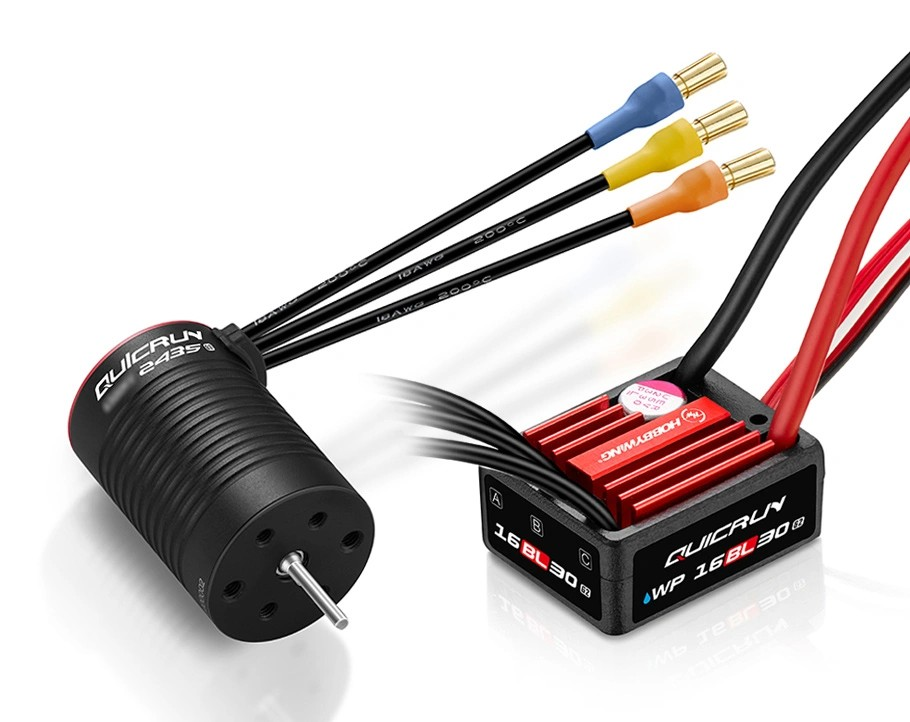

Hobbywing Quickrun 16BL30 G2 Micro Brushless ESC & 2435SL G3 Motor Combo (4500kV)

Combo Overview:

The Hobbywing QuicRun 16BL30 G2 ESC & 2435SL G3 Motor Combo delivers big power in a small package, perfectly suited for 1/14 to 1/18 scale RC vehicles. With intelligent efficiency, smooth control, and rugged durability, this combo is built to handle everything from high-speed runs to tough off-road conditions. Whether bashing or racing, it provides the reliability and performance needed to push your RC to the next level.

About the QuickRun Brushless Combo

Advanced Performance & Design

The Hobbywing Quicrun WP-16BL30 G2 ESC is engineered for exceptional performance in 1/16 and 1/18 on-road and off-road platforms. It pairs perfectly with the QuicRun 2030/2435 G2 motor, offering intelligent freewheeling technology for higher drive efficiency, improved stability, and lower temperatures. The compact design is 8.3% shorter, 7.1% narrower, and 16.7% lower than the previous generation, making installation easier with cleaner wiring.

Enhanced Power & Durability

With a BEC continuous current upgrade from 1A to 2A and a peak of 4A, the Quicrun WP-16BL30 G2 delivers fast, precise control, even for high-torque servos. The adjustable 6V to 7.4V BEC output offers versatility in power delivery, while the IP67 rating ensures reliable performance in tough environments like rain, sand, and mud. Perfect for most 1/14, 1/16, and 1/18 scale platforms, this ESC guarantees smooth power and exceptional durability.

High-Efficiency Motor

The Hobbywing QuicRun 2435SL brushless motor packs extreme power into a compact design, making it ideal for smaller-scale RC vehicles. Its 4-pole rotor delivers strong torque and explosive acceleration, while advanced engineering boosts efficiency by over 4% compared to previous generations. With lower operating temperatures and durable construction, this motor offers reliable, long-lasting performance on and off the track.

Features:

• High efficiency for more power with lower temps
• 4-pole rotor for strong torque and quick acceleration
• Improved output and efficiency over previous gens
• Durable build with heat-resistant coils and precision bearings
• Compact size for easier installation
• Smart freewheeling for better efficiency and cooler temps
• Upgraded BEC: 2A continuous, 4A peak
• Switchable BEC voltage: 6V or 7.4V
• IP67 waterproof for all-terrain use
• Aluminum heatsink for better cooling

What's in the box:

• 1pcs QuicRun 2435SL 4500kV G3 Motor
• 1pcs QuicRun WP 16BL30 G2 ESC

QuicRun WP 16BL30 G2 Specs

• Scale: 1/16 & 1/18
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: Waterproof
• Cont./Peak Current: 30A/100A
• Input Voltage: 2-3S
• BEC Output: 6V/7.4V - 2A
• Input Wires: 16AWG-75mm
• Output Wires: 16AWG-60mm
• Input Connectors: XT60
• Output Connectors: 3.5MM Gold (female)
• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported
• OTA Programmer: Not Supported
• Program Port: Shared with Throttle Wire
• Firmware Upgrade: Not supported
• Size & Weight
• Size: 33.4x26.8x15.1mm
• Weight: 38.5g( Included wires & connectors)
• Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
• Vehicles: 1/16th、1/18th On-Road & Off-Road & Short Course Truck& Monster Truck
• Applicable Motor: QUICRUN 2435 G2

QuickRun 2435SL G3 4500KV Brushless Sensorless 1/18-1/16 Motor Specs

• Type: 1/18-1/16, Brushless, Sensorless Motor
• Poles: 4
• KV Rating: 4500
• LiPo Cells: 2-3S
• No-load Current: 2.1A
• O.D.: 24mm
• Length: 36mm
• Shaft Diameter: 2mm
• Connectors: 3.5mm (male)
• Weight: 61.2g
• Front Bearing: OD8xID3xT4mm
• Rear Bearing: OD8xID3xT4mm
• Applications: 1/16-1/18 On-road & Off-road
