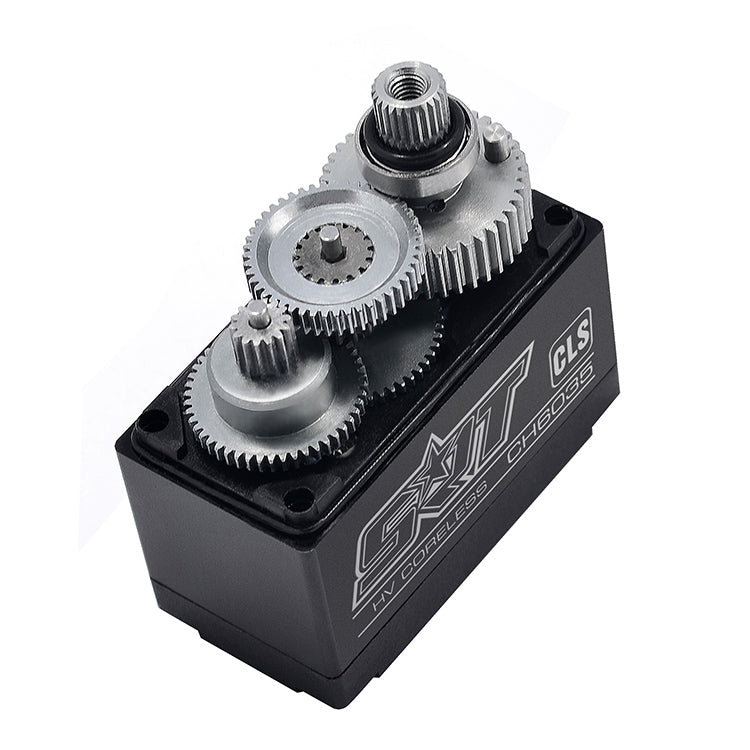

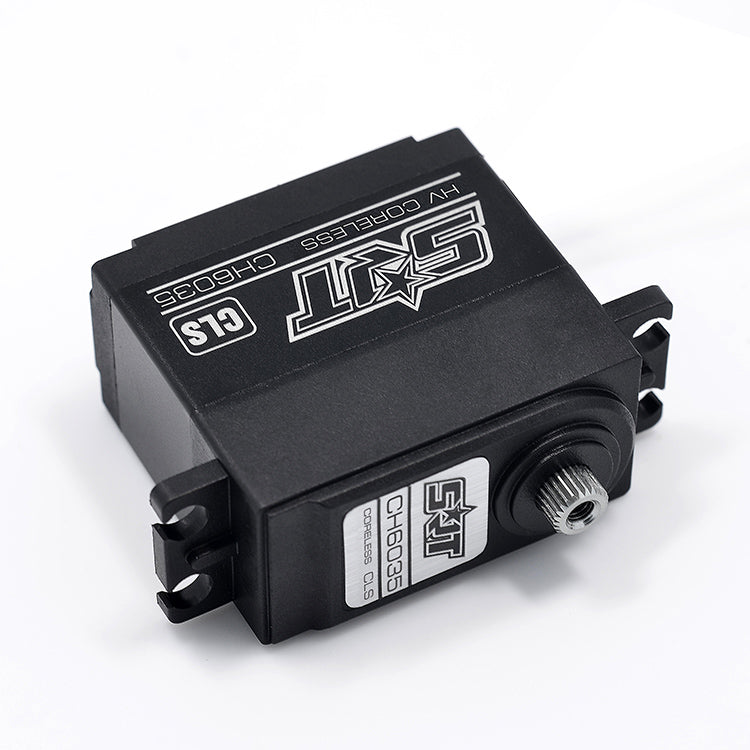

SRT CH6035 1/10th Scale HV Mega-High Torque Aluminum/Plastic Case Coreless Digital Servo

Product Description
Features:
  • Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
  • Incredible efficiency and low power consumption
  • 2 μsec Dead Band
Specifications:
Type Digital
Bearing Dual
Motor Type Coreless
Gear Type Metal
Gear Material Titanium & Steel
Control System Pulse width control
Working Frequence 1520μs / 330hz
Operating Voltage DC 6.0-8.4V
Operating Temperature Range -10 to + 60 degree
Operating Speed (6.0V): 0.16 sec/60 degrees at no load
(7.4V): 0.15 sec/60 degrees at no load
(8.4V): 0.14 sec/60 degrees at no load
Stall Torque (6.0V): 30.0kg.cm (416.6 oz/in)
(7.4V): 32.0kg.cm (444.4 oz/in)
(8.4V): 35.0kg.cm (486.1 oz/in)
Potentiometer Drive Direct drive
Dimensions 40.7 x 20.5 x 38.5 mm
Weight 75.0g
Connector Wire Length JR 250 mm
Vendor : SRT
€51.90
