  2. SKYRC D100 AC/DC Dual Balance 10A Charger / 5A Discharger

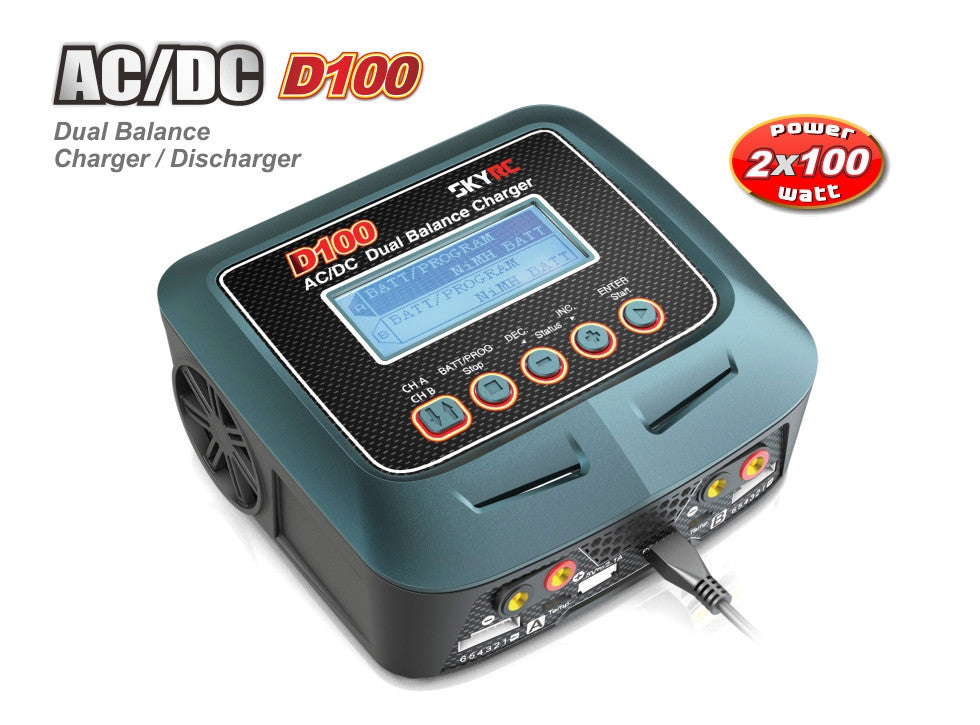

SKYRC D100 AC/DC Dual Balance 10A Charger / 5A Discharger

Product Description















Description:
Brand Name:SkyRC
Item Name:Banlance charger / discharger
Item NO.: D100
Model: SK-100089
Display Type: 128 x 64 LCD
Display Backlight: Blue
Case Material: Plastic
Controls: Five buttons
PC Communications: PC Port for PC Control & Firmware Upgrate
External Port: 2-6S Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port for PC.

Specification:
Dimension
Net Weight 975g
Input Voltage AC 100 - 240V / DC 11 - 18V
Charge Circuit Power DC Input 2 x 100W
AC Input 100W(Support Power Distribution)
Discharge Circuit Power 2 x 10W
Charge Current Range 0.1 - 10A
Discharge Current Range 0.1 - 5A
Current Drian for Banlancing Port Max 200mA/cell
Trickle Charging Current 30mA - 300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count 1 - 6S
NiMH/NiCd Battery Cell Count 1 - 15S
Pb Battery Voltage 2 - 20V

Features:
Lithium Battery Balancer
SKYRC D100 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

Maximum Safety
Automatic Charging Current Limit / Capacity Limit / Temperature Threshold / Processing Time Limit

Program Data Store/Load
The charger can store up to 10 different charge /discharge profiles for each channel. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Battery Meter
The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage by this charger.

Battery Resistance Meter
The user can check battery's total internal resistance and each cell's internal resistance.

PC Control
The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".

Terminal Voltage Control
The charger allows user to change the end voltage. (for expert user only)

English Manual please click here
Software please click here

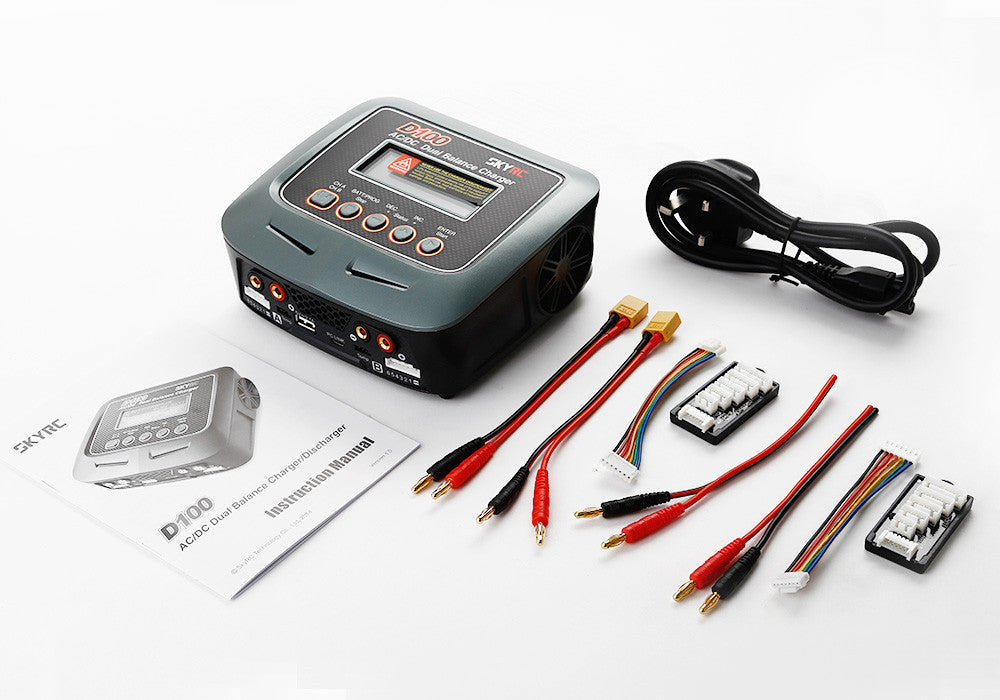

Package Included:
1x SKYRC D100 Charger
2x XH Adaptor
2x Charging Cable
2x Banana connectors with XT60 connector Charging Cable
1x Power Cord
1x Manual
Vendor : SKYRC
€115.00
