Sanwa M12S 2.4GHz FHSS-4 4Channels Transmitter set w/ RX-472 receiver #M12S w/RX472
Description:
This is an Airtronics M12S Super 2.4GHz FH4T 4-Channel Digital High-Response Telemetry System with Advanced Programming and SSL Support. This new M12S Super has many new features that set it apart from the original M12, making it the "must have" radio system for competition drivers at all levels.
Feature:
- 30% Faster Response Time Than the Original M12 - It's the Fastest Radio in the World, Period!
- Telemetry Mixing Allows You to Mix Telemetry Data and Telemetry Alerts to Various Channels
- Telemetry Assign Allows External Device to Connect and Control Many Transmitter Functions
- BASIC Menu Simplifies Transmitter Use - Easily Switch Between BASIC and STANDARD Menus
- Enhanced CODE AUX Function Allow Naming and Support of Up to 10 Different Functions
- Model Template Function Allows You to Quickly and Easily Set Up Complicated Models
- Includes Lightweight, 4 cell AA sized Battery Tray
- Adjustable Trigger Lever to Custom Fit Your Finger Size
- Steering Wheel Offset Bracket Allows Expanded Custom Adjustments
- Enhanced Vibration Alerts and Customizable Vibration Levels
- Enhanced LCD with Optional White or Blue Background Colors
- Earphone Jack Allows You to Hear Alerts and Alarms Without Outside Noise Interference
- Expanded Ackerman Function
- Expanded Timer/Alarm Functions, Including New Countdown Timer
- Throttle Slow Monitors the Transmitter's Voltage and Closes the Throttle to Alert You to Recharge
- Response Mode LEDs to See Current Throttle and Steering Response Modes at a Glance
- Expanded Racing Mode Function
Specification:
M12S Super Transmitter Specifications:
- Output Power: 100mW
- Nominal Input Voltage: 4.8 to 7.4v (6.6v Default)
- Operating Voltage Range: 4.0 to 9.0v
- Frequency: 2.4GHz FHSS
- Modulation Type: FH3 or FH4T (User Selectable) - Does Not Support FH2 Modulation
RX-472 Super Response SSL Receiver Specifications:
- Nominal Input Voltage: 3.7 to 7.4v
- Weight: 0.23oz (6.6g)
- Dimensions: 1.18 x 0.91 x 0.55in (30.0 x 23.3 x 14.0mm)
- Frequency: 2.4GHz FH3/FH4T (Selectable Via Transmitter)
- Fail Safe Support: Yes (All Channels)
- Battery Voltage Fail Safe Limit: 3.5 to 5.0v (FH3) / 3.5 to 7.4v (FH4)

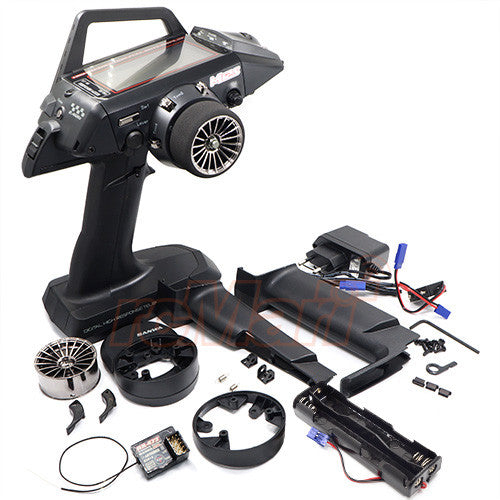

Include:
- M12S Super FH4T Digital High-Response Transmitter
- RX-472 FH4T Super Response SSL Receiver
- 4 Cell AA Battery Tray for Transmitter
- Receiver On/Off Switch
- Optional Grips (Large and Small)
- Optional Steering Wheel Angle Plates (Right and Left)
- Optional Large Diameter Steering Wheel
- Optional Steering Wheel Offset Plate w/Upper Cover
- Optional Steering Wheel Springs (Soft and Hard)
- Optional Throttle Trigger Angle Brackets (Thin and Thick)
- Optional Throttle Trigger Covers (Medium and Thick)
- Receiver Dust Boot Covers
- Transmitter Wrist Strap Mount
- 7.3V 500mAh AC Wall Charger
Attention:
- If you're using Analog servos in your model, DO NOT use the SHR or SSR Channel Response Mode for those channels. Use the NOR Channel Response Mode with Analog servos. Using SHR or SSR Channel Response Modes with Analog servos can result in poor performance or even damage to the servos and/or the receiver. SHR and SSR Channel Response Modes should only be used with Digital servos. While the SHR Channel Response Mode can be used with any brand of Digital servo, the SSR Channel Response Mode should only be used with Airtronics or Sanwa Super Response SRG Digital servos. Not all ESCs are compatible with SHR or SSR Channel Response Modes. If your ESC does not operate correctly, change the Throttle Channel Response Mode to NOR. SSR Channel Response Mode is only available when used with compatible FH4 or FH4T Super Response receiver.
- Please note that the Nominal Input Voltage is 4.8 to 7.4v, therefore this transmitter will not be compatible with 2S LiPo. If users wish to change the AA Sized battery tray to a battery pack, please choose a battery pack which is within that voltage range.
