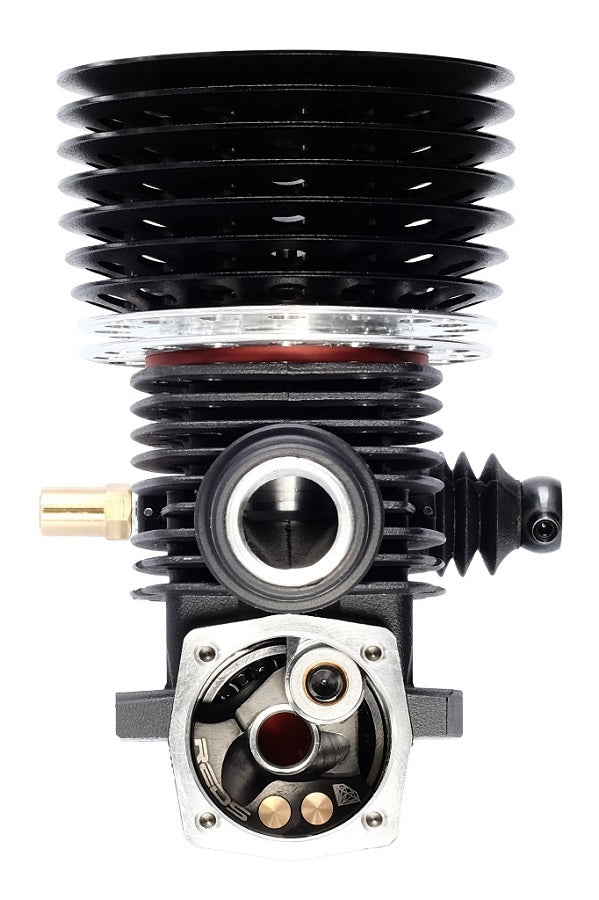

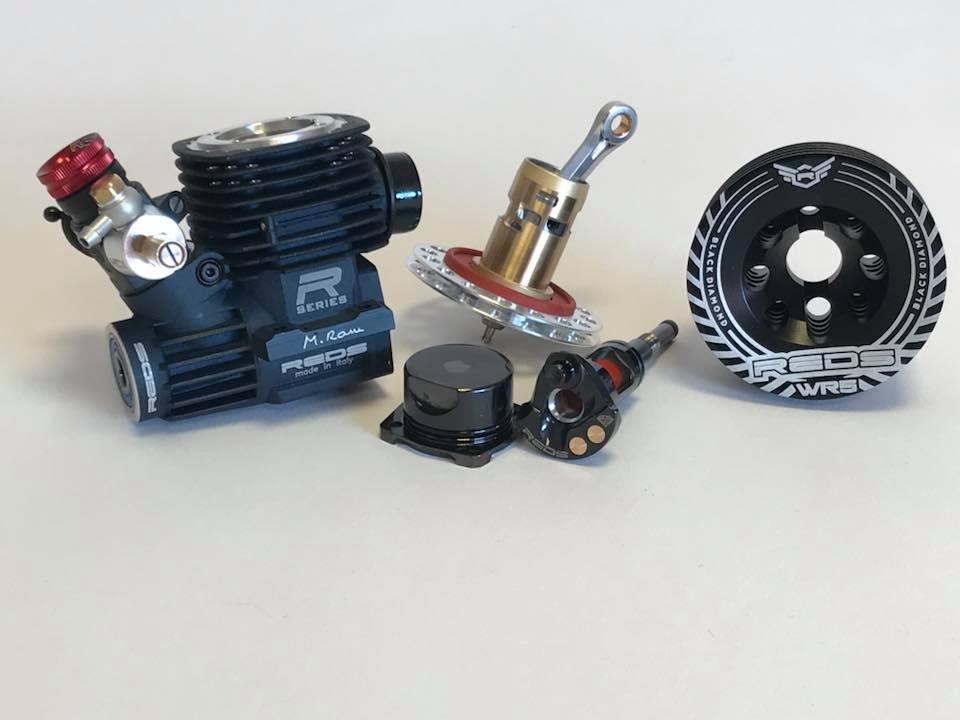

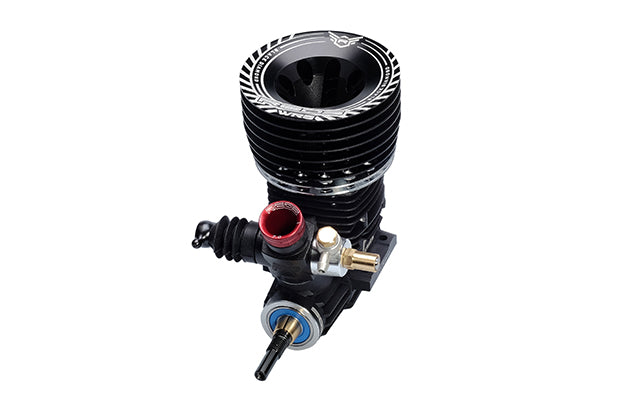

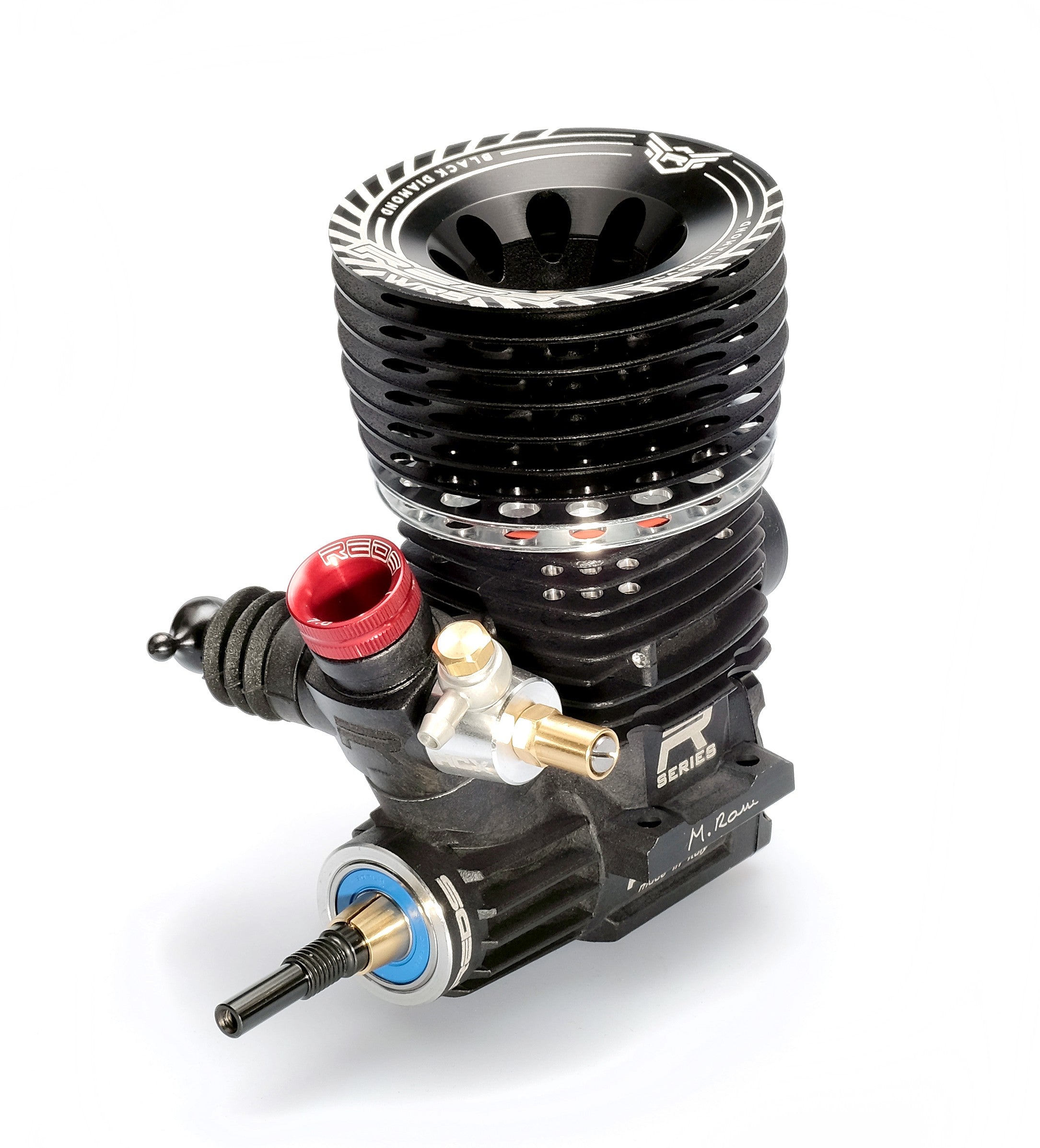

The REDS WR5 Black Diamond .21 engine is a 5 port off road engine based on the famous R5T Team Edition engine that has been a staple in the REDS lineup for 6 years. The WR5 Black Diamond is available in two different models - the standard WR5 Black Diamond that offers the REDS 5 port high torque power band, and the WR5 Black Diamond HE High Efficiency that offers low fuel consumption system and smooth power band for high driveability.
Black Diamond

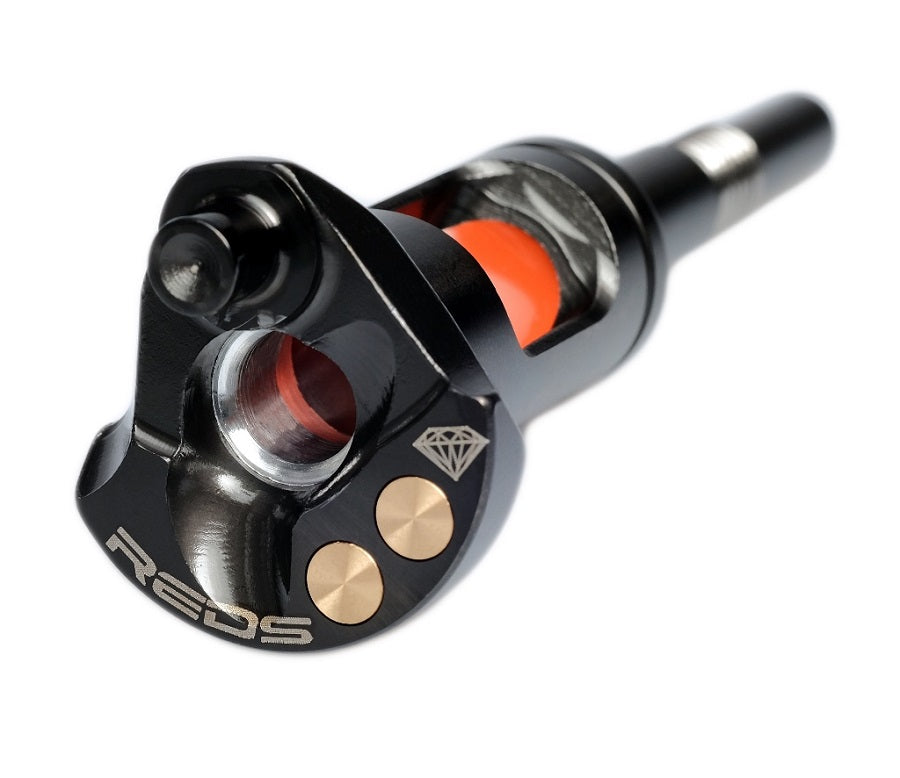

The REDS 5 port engine with a Black Diamond DLC Coated crankshaft has been improved. The DLC crankshaft can last approximately 3-4 times longer than a standard crankshaft thanks to the extreme hardness and low friction of the diamond coating. Even the conrod life is lengthened about 50%.
HCX CARB UPGRADE
The WR5 includes an improved HCX Carburetor featuring a Flow Improved Low Speed Needle and 7075 Aluminum Fuel Intake for improved tuning stability in extreme temperatures.
Gloss Black
The WR5 comes with a Black Gloss Cooling Head which features an innovative design for improved air flow in order to increase the cooling and guarantee a low gravity center. The cooling head is 10% lighter than the previous 5 port cooling head.
Specifications:
Applications: 1/8 Buggy and Truggy 1/8 Buggy and Truggy
Displacement [cm^3]: 3.5cc
Bore [mm]: 16.2
Stroke [mm]: 16.9
Intake Ports: 5
Exhuast Ports: 3
Crankshaft: Balanced BLACK DIAMOND™ DLC Coated
Front ball bearing: 7x19x6 rubber seal made in Japan
Rear ball bearing: 14x25.4x6 Swiss made ceramic
Carburetor diameter: 7.0 (6.0 and 6.5 optional)
Carburetor: HCX™ Upgrade
Weight: 345
Cylinder System: ABC
Exhaust Type: Rear
Recommended Glow Plug: REDS T5C or TS3
Recommended Exhaust: REDS 2104 + S
Recommended Fuel: 25-30% nitro, 8-10% oil
Break-in fuel: 12% oil
