REDS Racing VX 540 Sensored Brushless Motor (8.5T)

Product Description

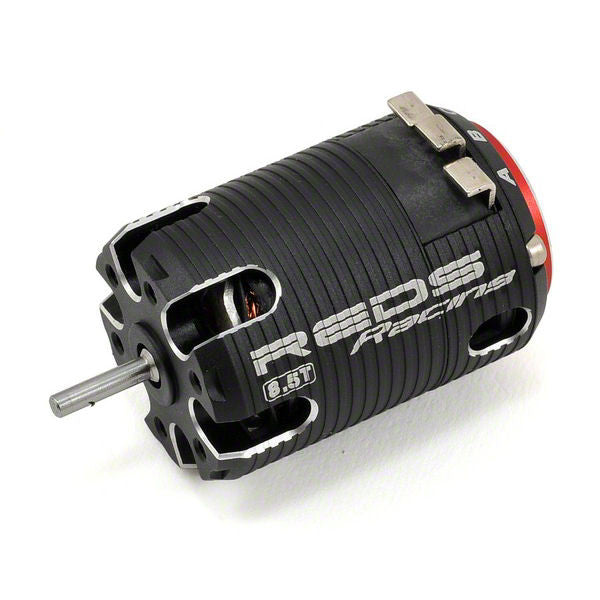

This is a 8.5 turn REDS Engines VX 540 Sensored Brushless Motor. The REDS VX line of Brushless Motors incorporate the latest technological advancements in brushless motor design and manufacturing, giving you the torque and RPM you want when you need it. The VX Sensored Motors feature a high-grade 6061 T6 aluminum can, CNC machined at an extremely high level of accuracy and quality. Perfectly balanced rotors are combined with high quality stator materials to deliver smooth power across all RPMs. Plus, the VX Sensored Motors include an easy to adjust timing system and low resistance high grade copper solder tabs, combined with a sensor design for outstanding performance and optimized efficiency. On Road or Off, REDS VX Sensored motors have been optimized to provide that extra edge needed for competition.

  • Lightweight
  • Optimized air flow design
  • CNC Machined 6061 T6 Billet Aluminum case
  • High-strength balanced sintered rotor
  • High Purity Copper Windings to maximize conductivity
  • Low Resistance, High Power, Silver-plated Solder Tabs
  • High RPM precision ball bearings

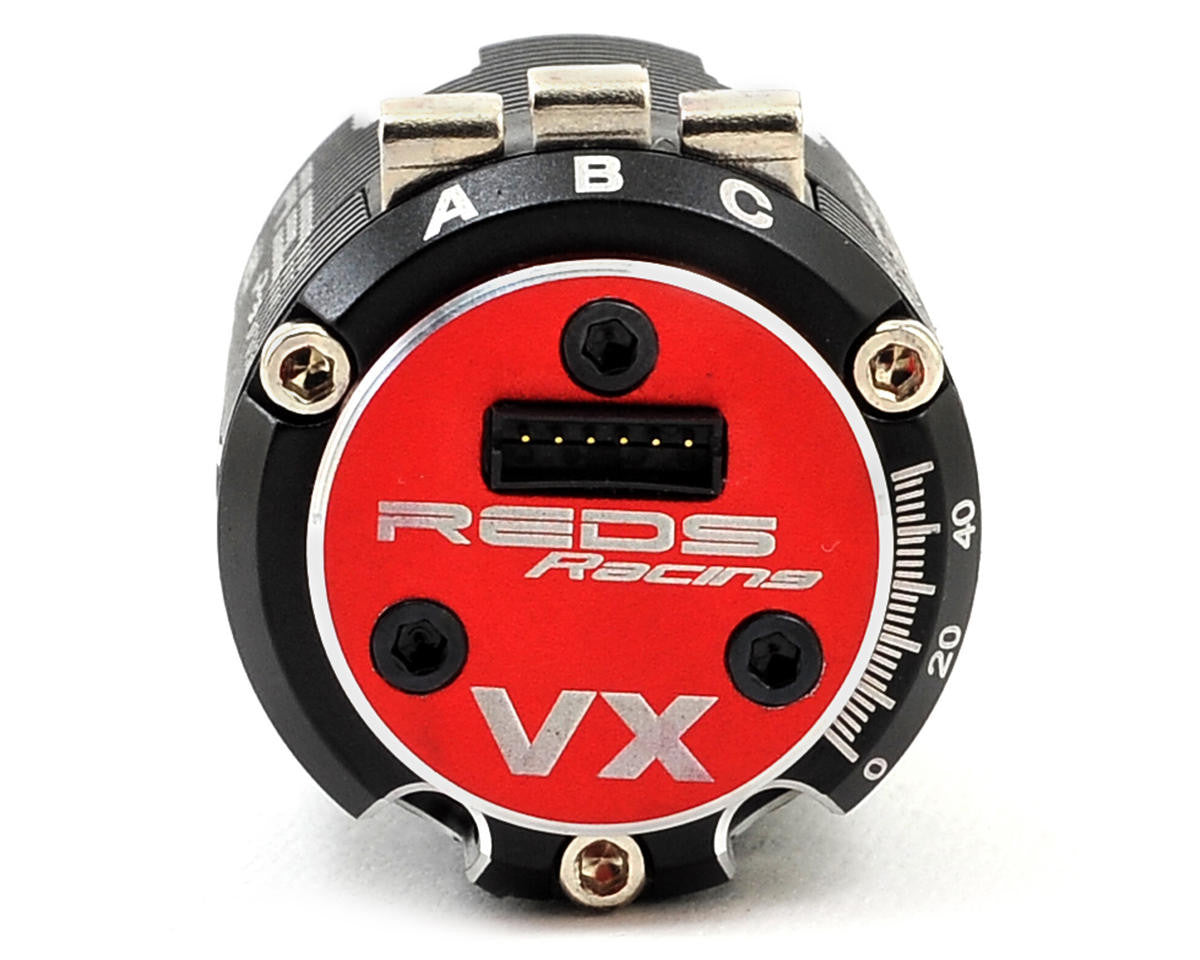

  • Adjustable Timing with aluminum end cup

RPM @ 7.4V:
kV: 4,600
Power (W): 390
Max Current (A): 50
Rotor: 12.5x5x25.3mm
Diameter: 35.8mm
Length: 52.9mm
Shaft Diameter: 3.17mm
Weight: 175 - 180g

€85.00 €99.00
