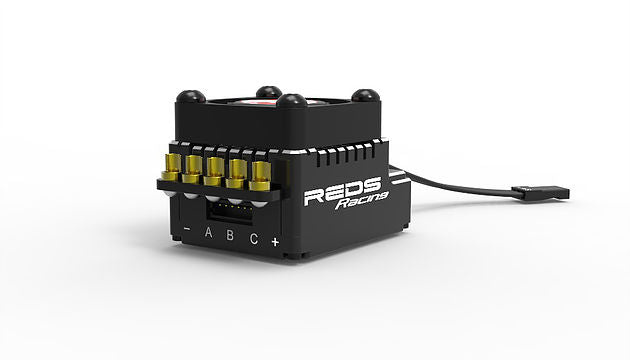

Reds Racing is proud to announce the new TX2 speed controller for the 1/10 brushless class. It runs on 2S LiPo batteries and has a built-in BEC with 6.0V/7.4V voltage output. The new ESC comes with external power capacitors to maintain a compact design, a reliable external power switch and high-speed cooling fan. With High Grade and Low Resistance Components utilized throughout, the TX2 takes 1/10 scale competition racing to a new level.
Power, control and reliability remain the foundation of this ESC. Built with a custom high-efficiency aluminum heatsink housing and full programming, the TX2 provides the tools for the win!
What’s new?
- Improved MOSFET's and a thicker PCB board. TX2 speed controller inner resistance has been lowered and the maximum current has been increased to 160A for better efficiency that increases performance and reliability.
- New braking system that allows you to have a powerful and fluid braking (very linear).
- New functions “Coast” and “Softening” that allow a driver to choose more ESC adjustments which improve performance and feel on the track.
- We have introduced a new Micro USB port to update and adjust the new speed controller directly from a PC or through Reds Racing program box.
- New built-in BEC with 6.0V/7.4V @ 6A voltage output.
- New power on/off button located on the ESC unit improves reliability over the old model as there is no additional cable.
Features:
Billet Aluminum Housing
High Density Copper PCB’s
High Grade and Low Resistance Components
30 mm High Speed Fan for Maximum Cooling
Sensor Plug for Precise Commutation with all Motors
Gold-plated Solder Posts for Easy Wire Replacement
Easy radio calibration
Professional Programming with program box
Intelligent Drive and Brake Frequency System
Ultra-smooth and Precise Throttle and Braking Control
High Efficiency Timing Control Technology
PC Interface for Advanced Programming and Updating
Tech Spec:
Current Continuous: 160A
Peak Current: 1200A
lnput: 4-8 cells NiMh/NiCd or 2S LiPo, 2S LiFe
Supported Motors: 540 size 2 pole sensored brushless
Suitable Motor: Over 3.5T
BEC Output: 6V-7.4V @ 6A

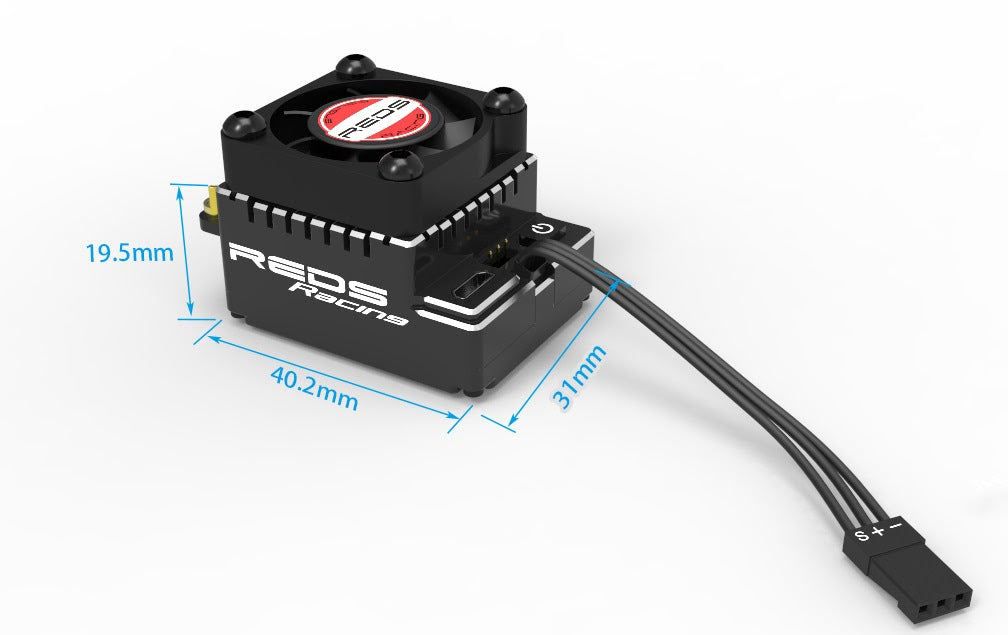

Size (LxWxH): 31x40x19.5mm
Weight: 45g
#SKU: SPCO0007
UPC: 761000966559
